Phytosomes: A Supramolecular Phospholipid Complex Strategy for Enhanced Herbal Drug Delivery

The global pharmaceutical paradigm is witnessing a significant shift back towards nature. Herbal medicines and phytopharmaceuticals, once relegated to traditional practices, are now at the forefront of drug discovery due to their diverse therapeutic effects and generally favorable safety profiles. However, the translation of this potential into clinical efficacy is often hindered by a critical bottleneck: the “bioavailability gap.”

A vast majority of biologically active plant constituents, such as flavonoids (e.g., quercetin, silymarin) and terpenoids (e.g., ginkgolides), are polar molecules. While they are water-soluble to varying degrees, they are poorly miscible in lipids. This presents a physiological paradox: to be absorbed, a molecule must pass through the gastrointestinal tract’s (GIT) epithelial cells, which are bounded by lipid-rich biological membranes  {4}. Hydrophilic molecules cannot easily diffuse through this lipophilic barrier, while highly lipophilic molecules often fail to dissolve in the aqueous gastric fluids, limiting their rate of absorption  {5}.To bridge this gap, researchers have turned to lipid-based delivery systems. While early attempts utilizing liposomes showed promise, they were plagued by issues of instability and drug leakage. This necessitated the development of a more robust technology: Phytosomes. The term, derived from phyto (plant) and some (cell-like), refers to a proprietary technology originally developed by Indena S.p.A. By complexing polyphenolic phytoconstituents with dietary phospholipids—primarily phosphatidylcholine—phytosomes create a molecular entity that is both water-stable and highly lipid-soluble  {6}. This dual characteristic allows the “active” fraction of the herb to reach systemic circulation in therapeutic concentrations, effectively overcoming the limitations of conventional extracts  {7,8}.

1. The Bioavailability Challenge in Phytopharmaceuticals

The efficacy of any oral medication is dictated by its pharmacokinetics—specifically, its absorption, distribution, metabolism, and excretion (ADME). For herbal extracts, absorption is the primary hurdle. The biological membrane is a phospholipid bilayer that acts as a gatekeeper, preferentially allowing the passage of lipophilic (fat-loving) substances while repelling hydrophilic (water-loving) ones  {9}.Many valuable phytoconstituents possess a chemical structure rich in hydroxyl groups, making them polar and hydrophilic. When administered orally, these molecules tend to remain in the aqueous environment of the GIT, unable to penetrate the gut wall, and are eventually excreted without exerting their therapeutic effect. Conversely, some compounds are so lipophilic that they cannot dissolve in the stomach fluids to begin with. Phytosomes are designed to act as a bridge between these two extremes. By enveloping the polar phytoconstituent in a phospholipid sheath, the phytosome effectively “masks” the polarity of the drug, allowing it to transition seamlessly from the hydrophilic environment of the gut lumen into the lipophilic environment of the enterocyte membrane.

2. Chemistry and Mechanism of Complexation

Understanding the chemical architecture of phytosomes is essential to appreciating their superiority over other delivery systems. The formation of a phytosome is not a random mixing process but a stoichiometric chemical reaction.

1. 1. The fundamental mechanism driving phytosome formation is the interaction between the phospholipid and the phytoconstituent. Phospholipids, such as phosphatidylcholine (PC), are amphiphilic molecules possessing a polar head (containing a phosphate group) and two non-polar fatty acid tails. Phytoconstituents, particularly polyphenols, are rich in polar functional groups, specifically hydroxyl (-OH) groups  {10}.In a suitable aprotic solvent, the phosphate group of the phospholipid forms a hydrogen bond with the hydroxyl groups of the phytoconstituent. This is a crucial distinction: the drug is not merely trapped inside a vesicle; it is chemically anchored to the lipid molecule itself. Spectroscopic analyses, including Fourier-Transform Infrared Spectroscopy (FTIR) and Proton Nuclear Magnetic Resonance ( 1H-NMR), have definitively confirmed this interaction  {11}. The result is a supramolecular complex where the lipid’s non-polar tails wrap around the polar core, creating a highly lipophilic outer surface that is compatible with cell membranes.

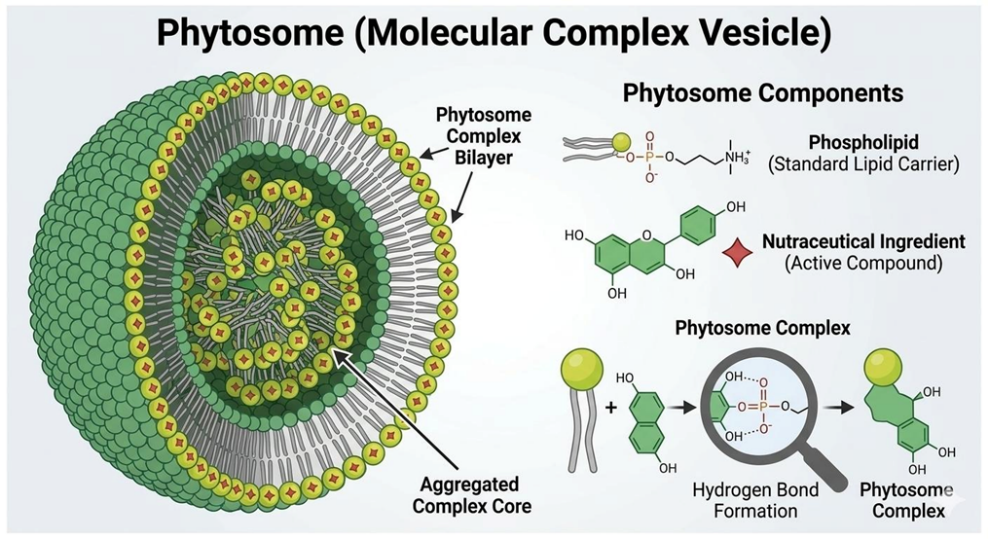

Figure 1 : Schematic representation of a phytosome

(molecular complex vesicle).

1. 2. Phytosomes vs. Liposomes: A Structural Divergence

It is a common misconception to conflate phytosomes with liposomes, yet they are structurally and functionally distinct entities.

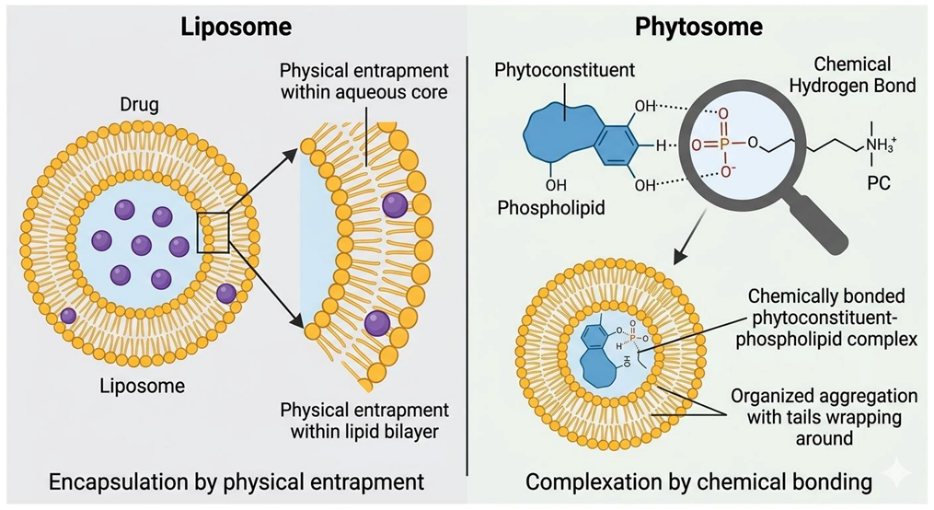

Fig. 2: Figure: Structural Comparison of Phytosomes vs. Liposomes

* Liposomes: These are spherical vesicles formed by mixing phospholipids with water. They contain a central aqueous core encapsulated by a lipid bilayer. In liposomes, the drug is physically entrapped—either dissolved in the water core (if hydrophilic) or embedded in the bilayer (if lipophilic). There is no chemical bond between the drug and the lipid  {12}. Consequently, drugs can leak out of liposomes during storage or in the GIT.

* Phytosomes: In contrast, the phytosome is a molecular complex. The drug is an integral part of the membrane structure, chemically bonded to the phospholipid. This imparts superior stability, preventing the drug from leaking out. Furthermore, because the interaction is stoichiometric (usually 1:1), phytosomes offer a much higher drug-loading efficiency compared to liposomes, where the amount of drug entrapped can be unpredictable  {13}.

4. Preparation Methodologies and Optimization

The preparation of phytosomes has evolved from simple solvent evaporation to more sophisticated, eco-friendly techniques. The choice of method depends on the scale of production, the sensitivity of the phytoconstituent, and the desired particle size.

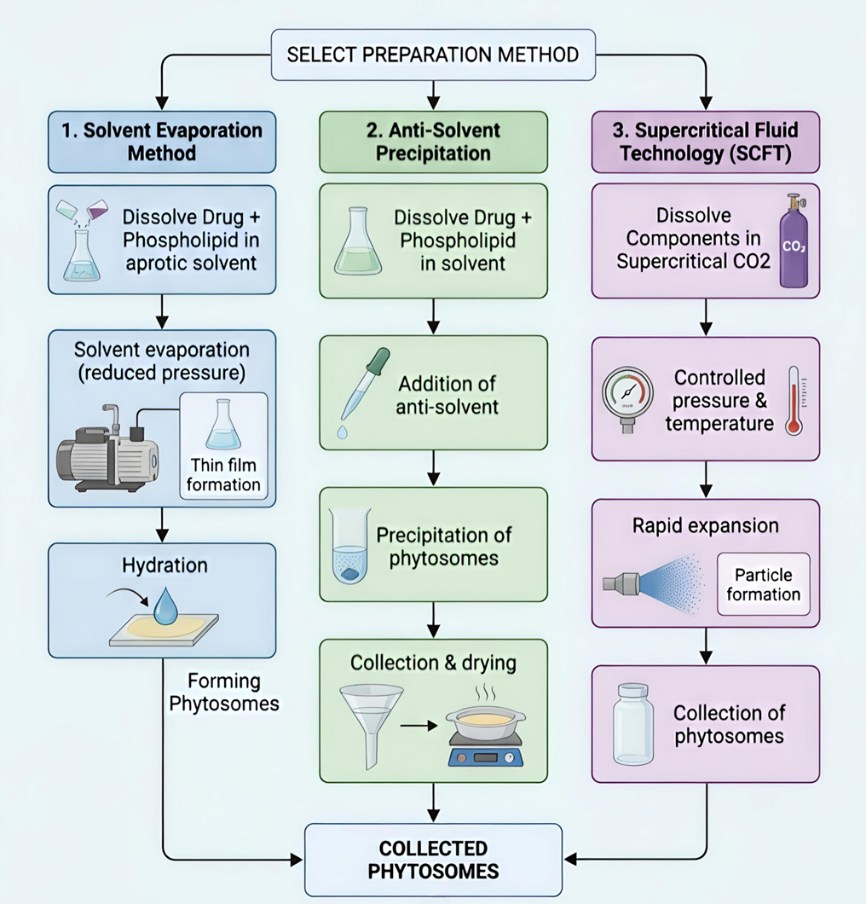

Flowchart: Preparation Methodologies

(Phytosomes)

4.1 Solvent Evaporation Method

This is the foundational technique used in early phytosome development and remains popular for laboratory-scale research.

* Procedure: The standardized herbal extract and the phospholipid (typically soy lecithin or phosphatidylcholine) are dissolved in an aprotic organic solvent such as acetone, dioxane, or dichloromethane. The molar ratio is strictly controlled, usually kept at 1:1 or 1:2 depending on the number of reactive sites on the drug  {14}. The mixture is stirred to allow the hydrogen bonding to occur. Subsequently, the solvent is removed, typically using a rotary evaporator, leaving behind a thin film of the complex. This film is then hydrated with water or a buffer solution to form the vesicular suspension.

* Advantages: The method is straightforward, requires minimal specialized equipment, and is highly reproducible.

* Limitations: The primary drawback is the use of organic solvents. Complete removal of these solvents is mandatory to meet pharmaceutical safety standards, as residues can be toxic.

4.2 Anti-Solvent Precipitation

Designed to overcome the scalability issues of solvent evaporation, this method is better for creating uniform particle sizes.

* Procedure: The drug and lipid are dissolved in a small amount of a good solvent. Then, a large volume of an “anti-solvent” (a liquid in which the complex is insoluble, such as n-hexane) is added under stirring. This drastic change in solubility forces the phytosome complex to precipitate out of the solution instantly  {15}.

* Advantages: This technique is often preferred for industrial scaling because it allows for better control over the precipitation rate and particle size distribution.

4.3 Supercritical Fluid Technology (SCFT)

As the industry moves towards “green chemistry,” SCFT has gained prominence.

* Procedure: This method utilizes supercritical carbon dioxide (CO$_2$) as the solvent or anti-solvent. Supercritical CO$_2$ has the penetrating properties of a gas and the solvation properties of a liquid. By manipulating pressure and temperature, the complexation can be induced without the use of toxic organic solvents.

* Advantages: It operates at lower temperatures, making it the ideal method for thermolabile (heat-sensitive) phytoconstituents that might degrade during traditional solvent evaporation  {16}. Furthermore, the resulting product is completely free of solvent residues.

4.4 Critical Process Variables

Regardless of the method chosen, several variables must be optimized to ensure high-quality phytosomes:

* Molar Ratio: The stoichiometry is paramount. A 1:1 ratio is generally optimal. If the ratio is skewed (e.g., too much lipid), the excess lipid may form empty liposomes, diluting the efficacy of the formulation.

* Reaction Time: Sufficient time must be provided for the hydrogen bonds to form. Incomplete reaction leads to a physical mixture rather than a chemical complex.

* Solvent Selection: The dielectric constant of the solvent influences the strength of the hydrogen bond formation. Aprotic solvents are preferred because they do not interfere with the hydrogen bonding between the drug and the lipid.

5. Characterization of Phytosomes

Demonstrating that a phytosome has formed—rather than just a mixture of ingredients—requires rigorous analytical testing.

* Differential Scanning Calorimetry (DSC): DSC is the gold standard for confirming complexation. In a physical mixture, the thermal profile would show the individual melting peaks of the drug and the lipid. In a phytosome, the sharp melting peak of the drug typically disappears or shifts significantly. This indicates that the drug has transitioned from a crystalline state to an amorphous state within the complex  {17}. The amorphous state requires less energy to dissolve, further contributing to improved bioavailability.

* Fourier-Transform Infrared Spectroscopy (FTIR): FTIR provides molecular-level evidence of the bond. The spectra of the pure drug and the complex are compared. Significant shifts in the wave numbers of the hydroxyl (-OH) group of the phytoconstituent and the phosphate (P=O) group of the lipid serve as fingerprints for hydrogen bond formation  {18}.

* Scanning Electron Microscopy (SEM): SEM allows researchers to visualize the physical structure of the phytosomes. It helps verify the particle size and surface morphology. A successful formulation should show discrete, vesicular structures without the presence of irregular drug crystals, which would indicate unreacted material  {19}.

* Particle Size and Zeta Potential: Dynamic Light Scattering (DLS) measures the hydrodynamic diameter of the vesicles, usually aiming for the nanometric range (50–200 nm). Zeta potential measures the surface charge; a high negative or positive charge (typically > ±30 mV) suggests that the particles will repel each other, preventing aggregation and ensuring long-term physical stability of the suspension  {20}.

6. Therapeutic Applications and Clinical Evidence

The theoretical advantages of phytosomes—enhanced solubility and membrane permeability—have been substantiated by a wealth of pharmacological and clinical data. The technology has been successfully applied to a diverse range of phytoconstituents, demonstrating superior therapeutic outcomes compared to conventional extracts.

6.1 Hepatoprotection: The Success of Silymarin

Silymarin, a standardized extract from the seeds of Silybum marianum (Milk Thistle), is a premier hepatoprotective agent composed chiefly of silybin, silychristin, and silydianin. Despite its efficacy in vitro, its clinical utility is often hampered by poor solubility and low bioavailability. Research has demonstrated that the silybin-phospholipid complex (commercially available as Siliphos®) marks a significant advancement in liver therapy. In comparative pharmacokinetic studies, the complex exhibited nearly 4 to 6 times higher absorption in animal models compared to uncomplexed silymarin  {21}. Mechanistically, the phytosome delivers high concentrations of silybin to the hepatocytes, where it acts as a potent antioxidant, scavenging free radicals and stabilizing the liver cell membrane against toxic insults  {22}. Clinical trials have shown that patients treated with the phytosome formulation showed a faster normalization of liver enzymes (SGOT, SGPT) and bilirubin levels compared to those treated with standard silymarin  {23}.

6.2 Oncology: Unlocking the Potential of Curcumin

Curcumin, the yellow pigment of turmeric (Curcuma longa), is celebrated for its anti-inflammatory and anticancer properties. However, its “rapid metabolism” and “poor aqueous solubility” result in less than 1% bioavailability when taken orally  {24}. The development of Curcumin Phytosomes (e.g., Meriva®) has been a game-changer. Human crossover studies have reported a staggering 29-fold increase in the bioavailability of total curcuminoids compared to standard extracts  {25}. This profound enhancement allows curcumin to achieve therapeutic plasma levels necessary to inhibit carcinogenesis. In clinical settings, phytosomal curcumin has shown promise in downregulating inflammatory markers such as C-reactive protein (CRP) and reducing the side effects of chemotherapy and radiotherapy in cancer patients  {26}. The improved lipid solubility enables curcumin to penetrate the dense lipid membranes of cancer cells, effectively targeting intracellular signaling pathways like NF-κB  {25}.

6.3 Cardiovascular and Cognitive Health: Ginkgo Biloba

The terpene lactones and flavonoids in Ginkgo biloba are vital for improving cerebral and peripheral blood flow. However, their absorption is often slow and incomplete. Studies on Ginkgo phytosomes have revealed a superior pharmacokinetic profile. The phospholipid complex significantly enhances the brain penetration of terpene lactones  {27}. Comparative data indicates that the complex produces peak plasma concentrations significantly faster and maintains them longer than non-complexed extracts. This sustained bioavailability translates to improved cognitive function in geriatric patients and better management of vascular insufficiency, such as intermittent claudication  {27}.

6.4 Anti-Inflammatory Therapeutics: Quercetin

Quercetin is a ubiquitous flavonoid with potent anti-inflammatory effects but is plagued by low oral absorption. Phytosomal technology has been employed to formulate quercetin for both systemic and topical use.

* Systemic Use: Orally administered quercetin phytosomes have shown enhanced efficacy in arthritis models. By achieving higher plasma concentrations, the complex effectively downregulates the expression of pro-inflammatory cytokines  {28}.

* Topical Use: In dermatological applications, such as for psoriasis or eczema, quercetin phytosomes integrated into gels demonstrate deeper skin penetration. The amphiphilic nature of the phytosome allows it to traverse the stratum corneum more effectively than free quercetin, delivering the active agent to the dermis where inflammation occurs  {28}.

6.5 Metabolic Disorders: Berberine

Berberine is a potent alkaloid used for managing type 2 diabetes and dyslipidemia, but its bioavailability is severely limited by P-glycoprotein (P-gp) mediated efflux in the intestine. Recent advances have shown that phospholipid complexation can inhibit this efflux mechanism. The berberine-phospholipid complex not only improves lipid solubility but also masks the drug from P-gp pumps, resulting in a 3- to 4-fold increase in absorption  {29}. This enhancement allows for lower dosing frequencies while maintaining glycemic control.

7. Comparative Bioavailability Analysis

The superiority of phytosomes over conventional extracts is best illustrated through quantitative enhancement factors. The following analysis aggregates data from multiple pharmacokinetic studies to highlight the magnitude of improvement.
