Computer-Aided Drug Design, Synthesis, and Evaluation of New Anti-Cancer Drugs

Background:

Cancer remains one of the most significant global health challenges, responsible for millions of deaths each year. Despite advances in early detection, surgical interventions, and therapies, traditional cancer treatments—such as chemotherapy, radiation, and surgery—often come with severe side effects, limited efficacy, and the risk of drug resistance. Chemotherapy, in particular, affects both cancerous and healthy cells, leading to undesirable toxicities and compromised quality of life for patients. Moreover, the emergence of drug resistance, either through mutations or bypass mechanisms, continues to undermine the effectiveness of many anti-cancer therapies. These challenges highlight the pressing need for the development of more targeted, efficient, and personalized therapies that can improve patient outcomes while minimizing harmful side effects. In response to these challenges, there has been a paradigm shift in drug discovery strategies. Rather than relying solely on empirical trial-and-error methods, the focus has shifted toward more rational, targeted approaches aimed at addressing the underlying biological mechanisms driving cancer. Novel anti-cancer drugs are now being developed to selectively target cancer cells while sparing normal tissues, thereby enhancing efficacy and reducing adverse effects. These new therapeutic strategies include targeted therapies, immunotherapies, and personalized medicine, each designed to combat the specific molecular and genetic abnormalities present in individual tumors.

The Role of CADD:

Computer-Aided Drug Design (CADD) has emerged as a transformative tool in modern drug discovery, particularly in the development of anti-cancer agents. CADD combines computational techniques with experimental data to predict, design, and optimize potential drug candidates in silico before they undergo costly and time-consuming synthesis and clinical trials. By simulating the interactions between small molecules and biological targets, CADD allows researchers to explore vast chemical spaces, identify promising compounds, and predict their pharmacological properties, such as potency, selectivity, and toxicity. The process of CADD involves multiple stages, including target identification, ligand design, molecular docking, virtual screening, and toxicity prediction. This computational approach not only accelerates the discovery of novel anti-cancer drugs but also enhances the precision and efficiency of drug development by enabling the design of molecules that are more likely to succeed in clinical trials. Importantly, CADD can be employed in both structure-based and ligand-based drug design, each offering distinct advantages depending on the availability of target structures and the nature of the disease. Moreover, the integration of CADD with other cutting-edge technologies, such as artificial intelligence (AI) and machine learning (ML), has further enhanced its capabilities, enabling the design of more effective and personalized anti-cancer therapies. CADD has already led to the discovery of several promising anti-cancer drugs that have moved from virtual screens to preclinical and clinical evaluation. For example, the development of targeted kinase inhibitors, such as imatinib (Gleevec), has been aided by CADD, marking a significant milestone in precision oncology. Similarly, CADD has played a crucial role in the development of immune checkpoint inhibitors, which have revolutionized the treatment of several cancers, including melanoma and non-small cell lung cancer.

Objective:

This paper aims to review the principles, methodologies, and applications of Computer-Aided Drug Design (CADD) in the development of new anti-cancer drugs. We will explore how computational tools and techniques, including molecular docking, virtual screening, and quantitative structure-activity relationship (QSAR) modeling, have facilitated the identification and optimization of promising cancer therapies. Additionally, we will examine the integration of CADD with experimental strategies, such as high-throughput screening and in vitro/in vivo testing, to validate drug candidates and optimize their properties. Finally, we will discuss the challenges and future directions of CADD in the context of cancer therapy, highlighting its potential to revolutionize the discovery of more effective, targeted, and personalized treatments for cancer patients.

2. Principles of Computer-Aided Drug Design (CADD)

Overview of CADD:

Computer-Aided Drug Design (CADD) is an interdisciplinary field that leverages computational chemistry, molecular biology, biophysics, and bioinformatics to design, optimize, and predict the interaction between small molecules and their biological targets. CADD uses computational methods to model the binding affinity between a drug and its target protein or receptor, enabling the prediction of drug efficacy and safety before conducting extensive laboratory experiments. By simulating molecular interactions in silico (via computer simulations), CADD accelerates the drug discovery process, reduces costs, and increases the chances of success in identifying potential drug candidates. The primary goal of CADD is to generate drug candidates that can selectively interact with specific biological targets associated with cancer, enhancing therapeutic efficacy and minimizing side effects. This process not only helps in designing novel compounds but also assists in optimizing existing drugs by modifying their structure to improve pharmacological properties.

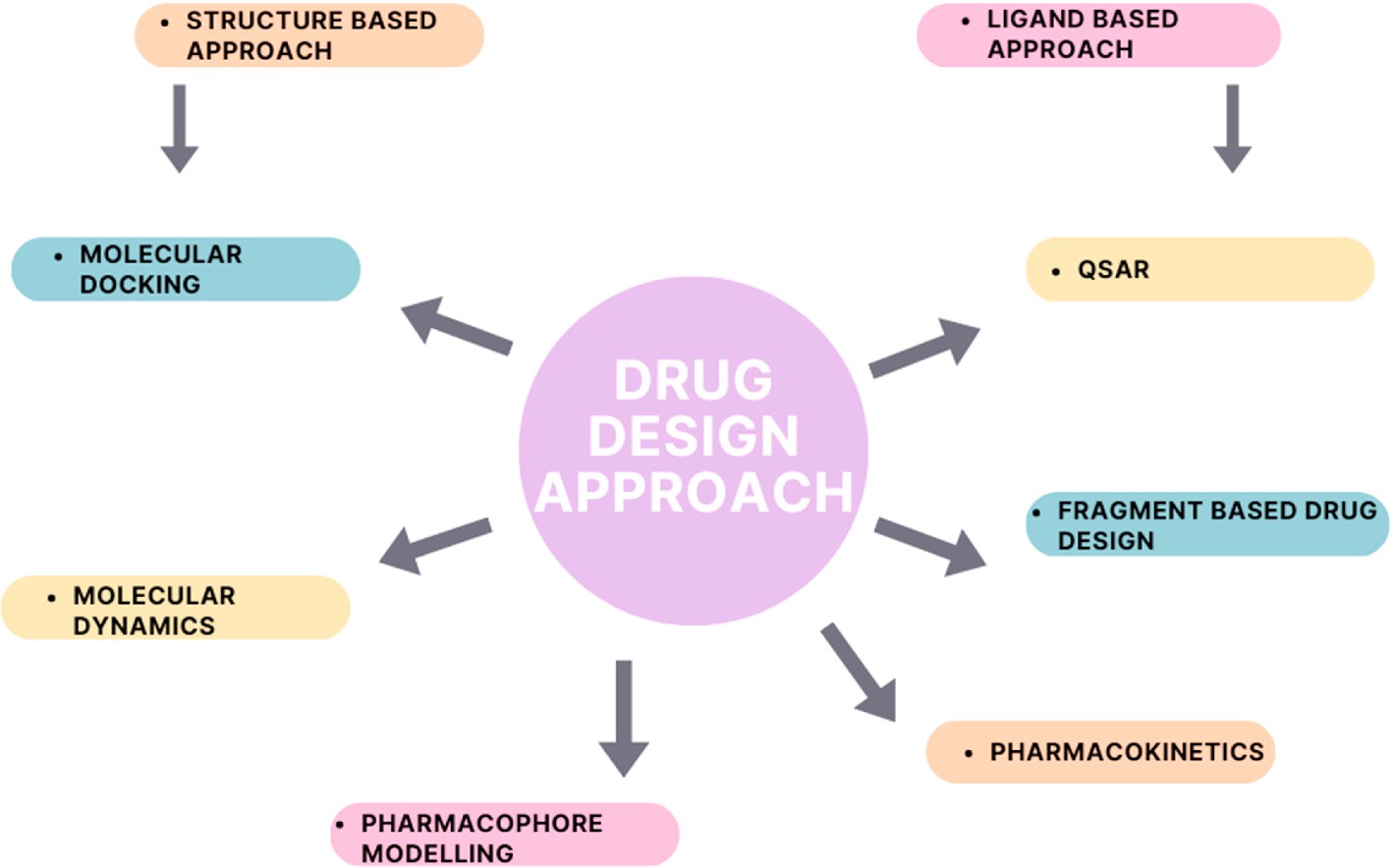

Phases of CADD:

1. Ligand-Based Design:

In ligand-based drug design, the design of new drug molecules is based on the known structures of ligands (molecules that bind to a target). The ligand’s binding affinity and its interactions with the target are critical in predicting how other similar compounds may bind to the same target. This design strategy is often used when the three-dimensional structure of the target is unknown or when only limited information is available. The principle behind ligand-based design is that molecules that share similar structural features with known active compounds are more likely to exhibit similar binding behavior and biological activity. Examples of techniques used in ligand-based design include:

1. • Pharmacophore Modeling: Identifying the key features of a ligand that are responsible for binding to a target, such as hydrogen bond donors/acceptors, hydrophobic regions, and charge interactions.
   • 3D-QSAR: The application of three-dimensional quantitative structure-activity relationship models, which correlate the 3D properties of a molecule to its biological activity.
2. Structure-Based Design:
   Structure-based drug design utilizes the 3D structure of a target protein, obtained through techniques such as X-ray crystallography or NMR spectroscopy, to identify optimal binding sites for drug candidates. This approach allows the design of molecules that specifically fit into the binding site of the target protein, a concept often referred to as the "lock and key" mechanism. By considering the geometric and electrostatic properties of the protein's binding site, structure-based design can lead to the identification of high-affinity compounds. Key tools and techniques involved in structure-based design include:
   • Molecular Docking: A method used to predict the optimal binding mode of a ligand to a target protein.
   • Virtual Screening: Involves screening large libraries of compounds to identify those most likely to bind to the target protein’s active site.
3. Fragment-Based Design:
   Fragment-based drug design involves screening small molecular fragments (typically smaller than traditional drug-like molecules) that can bind to the target protein. These fragments are identified using computational methods or experimental screening and serve as a foundation for developing larger, drug-like molecules. Once promising fragments are identified, they are chemically elaborated to increase their potency and selectivity. This approach allows for the development of molecules that have high affinity for their targets and may be easier to synthesize compared to larger molecules.
   • Fragment-Based Virtual Screening (FBVS): Virtual screening is performed on small fragment libraries to identify hits that can be developed into more potent compounds.
4. In Silico Predictions:
   In silico predictions are crucial for the optimization of drug candidates. Computational tools are used to predict molecular properties such as:
   • Solubility: Drug solubility is vital for bioavailability. Computational models can predict the solubility of drug candidates in water or physiological environments.
   • Lipophilicity: The ability of a compound to dissolve in fats or oils. Lipophilicity influences absorption, distribution, and the ability of a drug to cross biological membranes.
   • Toxicity: Predicting off-target toxicity is an important aspect of drug development. In silico models use historical data to estimate the likelihood that a compound will cause harmful effects on the liver, kidneys, or other organs. These predictions enable researchers to refine compounds before proceeding to synthesis and experimental validation, thereby saving both time and resources.

3. Key Methodologies in CADD for Anti-Cancer Drugs

1. Molecular Docking: Molecular docking is one of the cornerstone techniques in CADD that allows for the prediction of how small molecules (potential drugs) interact with a target protein. This computational method simulates the binding of a ligand (drug molecule) to a receptor (cancer-related protein) in 3D space. Docking algorithms explore various binding modes and orientations, ranking them based on predicted binding affinity. This approach is invaluable for identifying potential inhibitors for cancer-related targets such as kinases, proteases, and G-protein coupled receptors (GPCRs). Docking not only predicts the binding affinity but also provides insights into the specific interactions between the ligand and target, which can be used to design more potent and selective inhibitors.
2. Virtual Screening: Virtual screening involves computationally screening large databases of compounds to identify those that are most likely to interact with a specific cancer-related target. This technique is particularly useful for identifying hit compounds from compound libraries that can be further optimized through experimental testing. Virtual screening can be performed using ligand-based or structure-based approaches:
   • Ligand-based virtual screening: Uses known active compounds to search for new molecules that share similar features.
   • Structure-based virtual screening: Screens compound libraries based on the 3D structure of the target protein. It identifies molecules that are predicted to bind to the protein’s active site with high affinity. Virtual screening accelerates the discovery of potential anti-cancer drugs by narrowing down the vast chemical space to a manageable set of compounds that are more likely to be effective.
3. QSAR (Quantitative Structure-Activity Relationship): QSAR modeling is a statistical approach used to establish a relationship between the chemical structure of a compound and its biological activity. QSAR models predict the activity of new compounds by analyzing the chemical properties (e.g., hydrophobicity, charge, steric factors) of known molecules that have been tested for their anti-cancer activity. This methodology enables researchers to design new drug candidates that are expected to have better pharmacological profiles. It is particularly useful in optimizing lead compounds for better efficacy and selectivity against cancer cells, while minimizing toxicity.
4. Molecular Dynamics Simulations: Molecular dynamics (MD) simulations allow researchers to study the motion of atoms and molecules over time. By simulating the interactions between drug molecules and their targets at the atomic level, MD simulations provide insights into the stability of drug-target complexes and help understand the dynamic nature of these interactions. This technique can reveal how ligands bind and unbind from their targets, the flexibility of the binding site, and the conformational changes that occur upon ligand binding. MD simulations are particularly useful in refining drug candidates by providing a deeper understanding of the drug-target interaction and optimizing the molecular design for enhanced binding.
5. AI and Machine Learning: Artificial intelligence (AI) and machine learning (ML) techniques are transforming the field of CADD by analyzing large-scale datasets and making predictions that would otherwise be difficult or time-consuming. These AI-powered methods can identify novel drug candidates, predict drug efficacy, and analyze patient data to facilitate personalized drug design. Machine learning models are trained on vast chemical and biological data, allowing them to predict the activity and toxicity of new molecules without requiring detailed mechanistic knowledge. Recent advances in deep learning have further enhanced the ability of AI to predict complex patterns in drug discovery, leading to more effective and targeted cancer therapies.

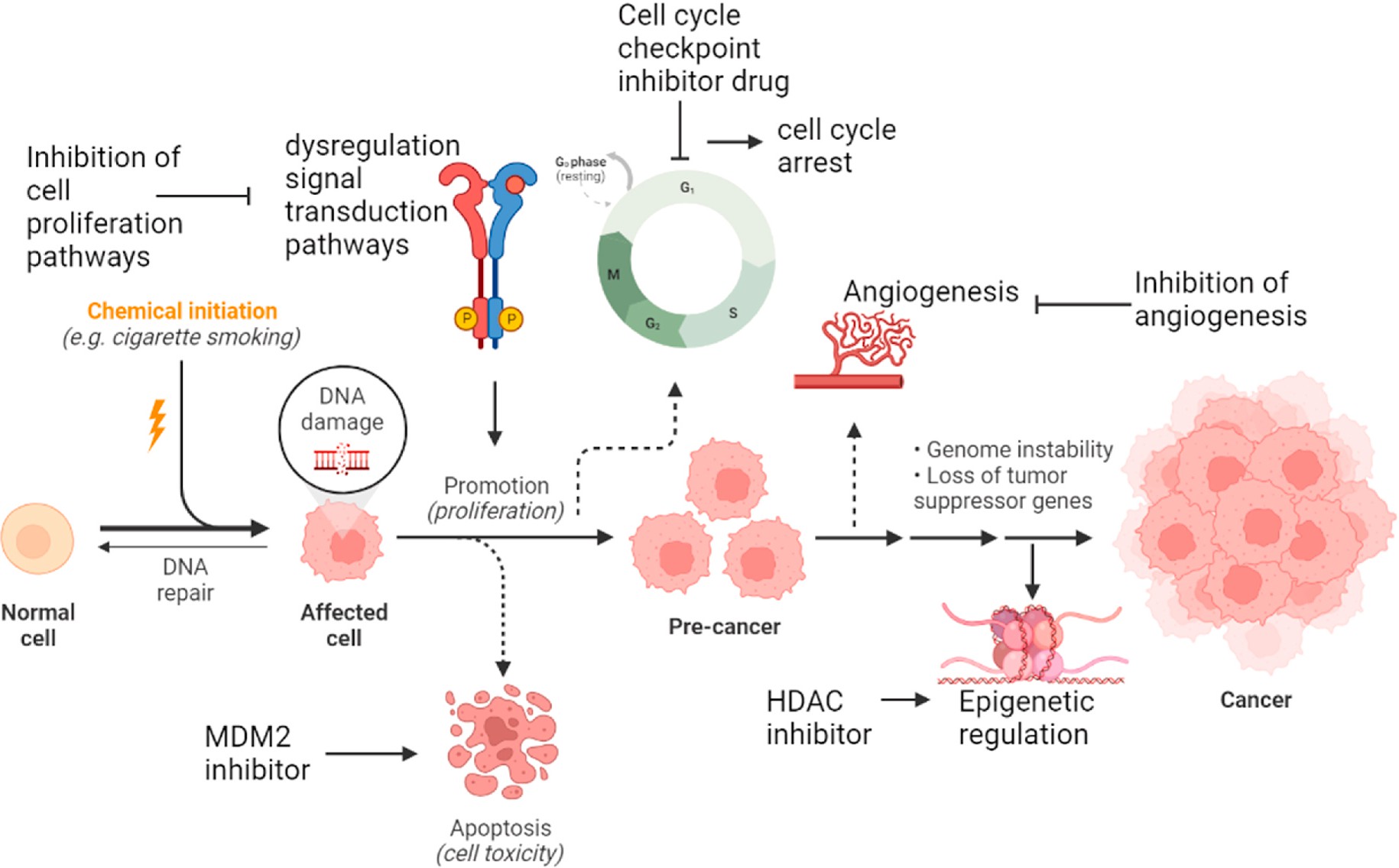

Fig. Major anticancer drug targets explored through computer-aided drug design.

Chemoinformatics and Synthesis:

Once promising anti-cancer drug candidates are identified and optimized through Computer-Aided Drug Design (CADD), the next step in the drug development process is the chemical synthesis of these compounds. Chemoinformatics plays a vital role in this phase by integrating computational methods with experimental chemistry to aid in the design and synthesis of novel drug candidates. Using data from CADD, chemoinformatics tools predict the synthetic feasibility of compounds, helping to streamline the synthesis process and reduce the likelihood of costly and time-consuming failures in the laboratory. Chemoinformatics can also help guide synthetic chemists by providing information on reaction pathways, functional group compatibility, and possible synthetic routes. Furthermore, these tools assist in predicting the properties of the synthesized molecules, such as solubility, stability, and bioavailability, which are crucial for developing effective cancer therapies. By combining computational predictions with experimental chemistry, chemoinformatics accelerates the transition from virtual drug design to actual compound synthesis.

High-Throughput Synthesis:

High-throughput synthesis refers to the use of automated platforms and technologies that enable the rapid production of large libraries of chemical compounds for screening against specific cancer targets. These automated systems allow researchers to synthesize and test thousands of compounds in a relatively short time, providing a vast pool of potential drug candidates. This approach is particularly useful in drug discovery, as it facilitates the exploration of large chemical spaces and identifies promising leads quickly. High-throughput synthesis is coupled with high-throughput screening (HTS) platforms, which allow for the simultaneous evaluation of the biological activity of multiple compounds. HTS technology is essential in identifying compounds that exhibit the desired anti-cancer effects and helps prioritize which compounds should undergo further optimization. By accelerating the synthesis and testing of large libraries, high-throughput platforms significantly shorten the drug discovery timeline.

Combinatorial Chemistry:

Combinatorial chemistry is another powerful technique used in the synthesis of anti-cancer drug candidates. This approach involves the creation of large, diverse compound libraries through systematic variations of chemical building blocks, which can then be screened for their biological activity. By combining different functional groups, scaffolds, or linkers, chemists can rapidly generate thousands of structurally diverse compounds that could have potential as anti-cancer agents. CADD is particularly helpful in combinatorial chemistry by guiding which compounds from the library are most likely to exhibit strong binding affinity for the target cancer protein. Instead of synthesizing and testing every compound in the library, CADD can prioritize which molecules should be produced and evaluated, thus increasing the efficiency of the drug discovery process. In this way, CADD and combinatorial chemistry work hand-in-hand to create a more effective and targeted drug development pipeline. The ability to generate diverse compound libraries, combined with computational screening, allows researchers to quickly identify promising candidates and improve the chances of finding potent anti-cancer drugs.

Nanotechnology and Drug Delivery:

One of the major challenges in cancer treatment is the selective delivery of drugs to cancer cells while minimizing toxicity to healthy tissues. Advances in nanotechnology have led to the development of nanocarriers—tiny particles, often in the range of 1 to 100 nanometers, that can encapsulate drugs and deliver them specifically to tumor sites. Nanoparticles can be designed to take advantage of the enhanced permeability and retention (EPR) effect, which is a phenomenon observed in many tumors where blood vessels are more permeable than in normal tissues, allowing nanoparticles to accumulate more readily in the tumor environment. CADD plays a significant role in the development of nanotechnology-based drug delivery systems by helping design nanoparticles that can effectively carry anti-cancer drugs to their targets. By simulating the interaction between nanoparticles and cellular membranes or cancer cell receptors, CADD can predict how these nanocarriers will behave in vivo, improving the design of delivery systems. Additionally, surface modifications of nanoparticles, such as the addition of targeting ligands, can be computationally optimized to enhance their specificity for cancer cells, reducing side effects and improving therapeutic outcomes. The integration of nanotechnology with CADD provides a powerful platform for the development of targeted cancer therapies that are more effective and less toxic. Nanocarriers also offer the possibility of co-delivering multiple drugs simultaneously, potentially improving the efficacy of combination therapies and overcoming drug resistance.

Green Chemistry in Drug Synthesis:

As the pharmaceutical industry continues to grow, there is an increasing emphasis on sustainability and minimizing the environmental impact of drug production. Green chemistry focuses on the design of chemical products and processes that reduce or eliminate the use and generation of hazardous substances. In the context of anti-cancer drug synthesis, green chemistry aims to minimize the generation of toxic by-products, reduce energy consumption, and use environmentally friendly reagents and solvents. CADD supports the application of green chemistry by predicting the environmental impact and synthetic feasibility of potential drug candidates before they are synthesized. For example, CADD tools can help identify which chemical reactions are more efficient, require less energy, or produce fewer by-products. Additionally, CADD can assist in the development of solvent-free or solvent-reduced synthetic routes, further minimizing the environmental footprint of drug production.

Furthermore, advances in biotechnology and enzymatic processes are increasingly being integrated with green chemistry principles to create more sustainable methods of drug synthesis. By reducing waste and reliance on hazardous chemicals, green chemistry techniques not only promote environmental sustainability but also enhance the safety and cost-effectiveness of anti-cancer drug production.

In Vitro Testing:

In vitro testing plays a pivotal role in evaluating the initial cytotoxicity, effectiveness, and potential mechanisms of action of anti-cancer drug candidates. These tests are typically carried out in laboratory settings using cancer cell lines that serve as models for human cancer biology.

• Cell-Based Assays:

These assays are used to assess the viability and cytotoxic effects of a drug on cancer cells. The MTT assay is one of the most commonly used techniques, wherein the reduction of a tetrazolium salt to a formazan product reflects the number of viable cells. Other assays, such as flow cytometry, can be used to evaluate the induction of apoptosis by detecting markers such as Annexin V or propidium iodide staining, while caspase activity assays assess the activation of key enzymes involved in programmed cell death. These assays provide insight into the drug’s potential to inhibit cancer cell growth and survival.

• Mechanistic Studies:

In addition to determining cytotoxicity, mechanistic studies investigate how a drug candidate induces cell death and inhibits cancer progression. This includes examining the pathways involved in apoptosis (e.g., caspase-dependent or mitochondrial pathway) and cell cycle arrest. Techniques like Western blotting, immunofluorescence, and quantitative PCR can help identify changes in protein expression and signaling pathways that are activated or inhibited by the drug, providing insight into the molecular mechanisms underlying its anti-cancer activity.

In Vivo Testing:

Once a drug candidate demonstrates efficacy in vitro, it must be evaluated in living organisms to assess pharmacokinetics, efficacy, and toxicity in a more complex biological system.

• Animal Models:

Animal models, particularly mouse and rat models, are commonly used to evaluate the in vivo efficacy of anti-cancer drugs. These models mimic the disease progression of human cancers, allowing researchers to test how drugs perform in a living organism. In vivo studies provide data on how the drug is absorbed, distributed, metabolized, and excreted (pharmacokinetics), as well as its ability to inhibit tumor growth and metastasis. These studies also allow for the observation of any adverse effects or toxicity that might occur at various doses.

• Tumor Xenografts:

Tumor xenografts are an important in vivo model where human cancer cells are implanted into immunocompromised mice. This model is particularly useful for studying human tumor biology and evaluating how well a drug works in a system that closely resembles human cancer. By monitoring tumor growth over time, researchers can assess the drug's ability to inhibit cancer cell proliferation and metastasis, as well as evaluate potential side effects and long-term outcomes.

• Genomic and Proteomic Evaluation:
  Advances in genomics and proteomics allow researchers to study the genetic and protein expression profiles of cancer cells before and after drug treatment. By analyzing changes in gene expression, mutations, and protein profiles, researchers can determine how the drug impacts the cancer at the molecular level. These evaluations help to better understand the drug's mechanism of action and its potential for targeting specific genetic alterations or protein expressions associated with cancer.

Clinical Trials:

The final stage of drug evaluation occurs through clinical trials, where the safety and efficacy of the drug are tested in human patients.

• Phase I:

Phase I clinical trials focus primarily on assessing the safety of a new drug in a small group of healthy volunteers. These trials determine the optimal dose, identify potential side effects, and evaluate how the drug is metabolized and cleared from the body. This phase is crucial for establishing a drug's safety profile and dose range for further testing.

• Phase II:

In Phase II trials, the drug is tested in cancer patients to evaluate its efficacy and side effects. These trials are designed to assess whether the drug has an impact on tumor growth and provide further data on its safety in the target patient population.

• Phase III:

Phase III trials are large-scale studies that compare the new drug against standard treatments in a broad population of cancer patients. These trials are designed to provide definitive evidence of the drug's efficacy, long-term safety, and overall impact on survival rates. Phase III trials are critical for determining whether the new drug can be approved for general use.

• Phase IV:

Phase IV trials are conducted after the drug has been approved and is available on the market. These trials monitor the long-term effects, safety, and potential drug-drug interactions in a larger and more diverse patient population. Phase IV studies also help identify rare side effects that may not have been detected in earlier trials.

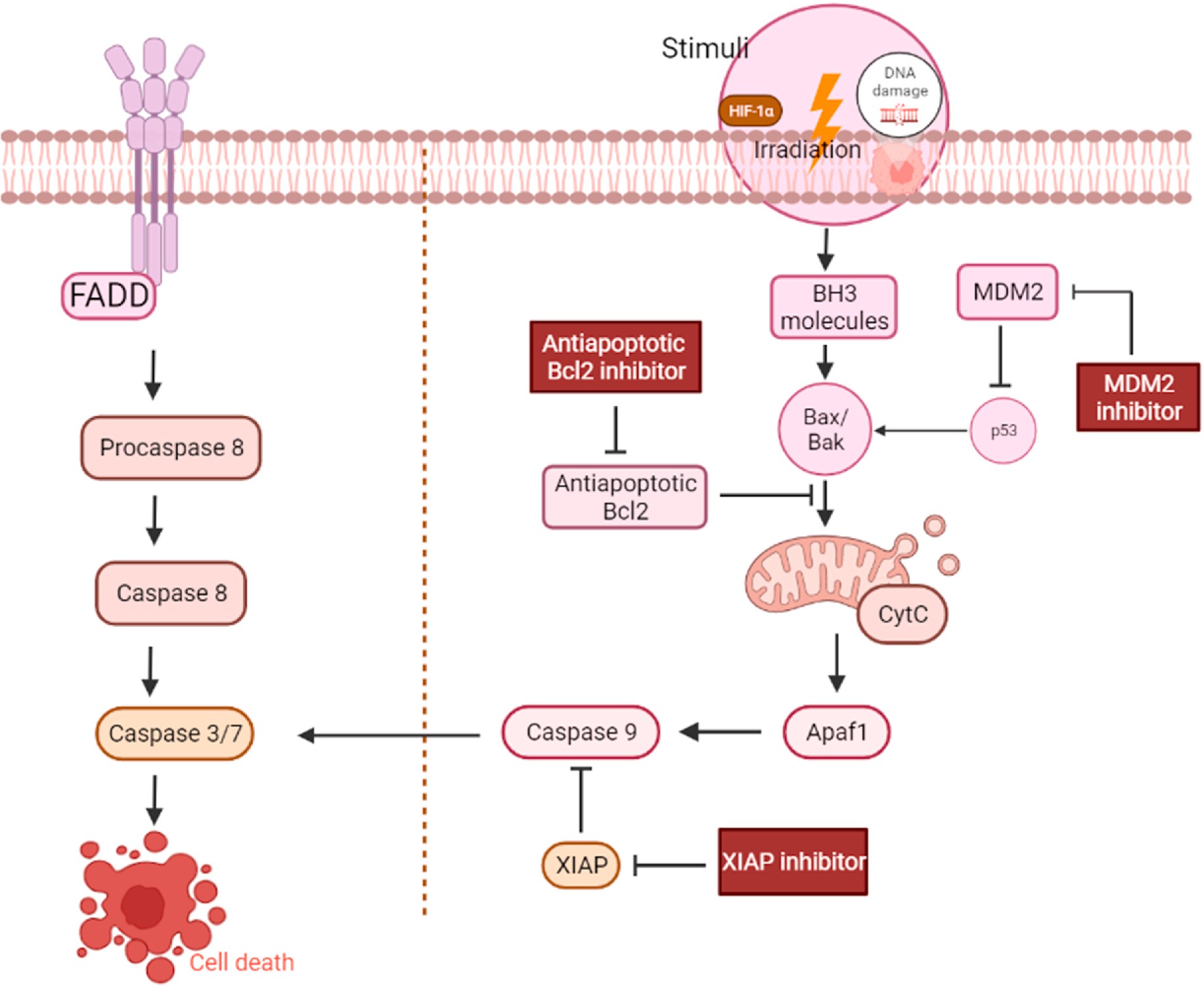

Fig. Computational exploration of drug targets for apoptosis.
