A Review on Solubility Enhancement by Solid Dispersion Method

Abstract

The issue of poor solubility remains a significant barrier in the targeted drug delivery of many newly developed pharmaceutical compounds. It is estimated that at least 40% of novel drug candidates emerging from pharmaceutical research exhibit poor water solubility which directly impacts their therapeutic effectiveness due to inadequate absorption and low oral bioavailability. Enhancing the solubility and dissolution rate of such drugs is, therefore, one of the major challenges faced by formulation scientists today. Among the various formulation approaches available the development of solid dispersions using hydrophilic carriers has proven to be an effective strategy to address these issues. By dispersing the poorly soluble drug in a water-soluble matrix solid dispersions improve the wettability, dissolution rate, and ultimately the bioavailability of the drug. This technique has gained considerable attention as a promising method for enhancing the performance of hydrophobic drugs. This review focuses on the fundamental concepts of solid dispersions, including their types, rationale behind their use, advantages, limitations, and the manufacturing techniques involved. Furthermore, it discusses the challenges associated with the large-scale commercialization of solid dispersion-based formulations and the need for continued research to overcome these limitations.

Keywords

Introduction

The oral route is the most commonly used and preferred method for drug administration due to its ease of use and patient convenience. However, it poses challenges when a drug has poor solubility or limited membrane permeability. Although over 90% of medications are taken orally, but their solubility in aqueous environments has a significant impact on their absorption, bioavailability, and overall pharmacokinetic profile. A drug's bioavailability, which is directly impacted by its solubility, determines its therapeutic efficacy. To produce the desired pharmacological reaction, the drug concentration in the systemic circulation must be reached.^[1,3,7]

However, more than 40% of new drug candidates fail during development due to suboptimal biopharmaceutical properties, particularly poor solubility and low bioavailability. Over time, advancements in drug discovery have significantly impacted these properties, yet poorly water-soluble drugs continue to present challenges in oral dosage form development.^[2,3]

In the gastrointestinal (GI) tract, low water solubility and poor membrane permeability are two typical traits that restrict drug absorption. Before a drug may cross the gastrointestinal tract's membranes, it must dissolve in the stomach or intestinal fluids. to enter the systemic circulation effectively. To increase the bioavailability of oral medications, Pharmaceutical research has focused on two primary areas: increasing the solubility and rate of dissolution of poorly soluble medications and improving their membrane permeability.

One intriguing approach to these problems is solid dispersion, a formulation method that increases the drug's solubility and bioavailability by dispersing it in a matrix that is physiologically inert. Corrigan claims that solid dispersions are byproducts of the conversion of a liquid medication. They are a useful tactic for enhancing oral drug administration since they can solidify a carrier combination and, in practice, exhibit better drug release patterns than traditional dosage forms. Solid dispersions, according to Chiou and Riegelman, are systems in which one or more active components are dispersed in a solid state inside an inert carrier matrix by means of solvent evaporation, melting (fusion), or a combination of the two processes.^[10,7]

SOLUBILITY:

The maximum amount of a solute that can dissolve in a given volume of solvent under particular circumstances is referred to as solubility. Both quantitative and qualitative descriptions are possible.

• The quantitative representation of solubility is the concentration of a solute in a saturated solution at a particular temperature.
• In qualitative terms, it is defined as the innate capacity of two or more substances to mix and form a homogeneous molecular dispersion.

Regardless of the kind of solvent used, solubility is categorized by the British Pharmacopoeia (BP) and the United States Pharmacopoeia (USP) only on the basis of quantification.  They offer precise standards for classifying substances according to their solubility, which is determined by the amount of solvent present. Need to dissolve a specific solute weight. ^[16,17]

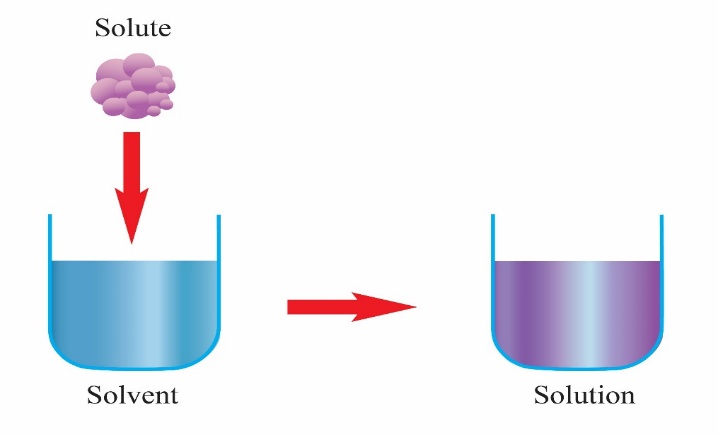

Figure 1: Solubility

Approximate Solubility Classification Based On Usp And Bp Standard

FACTORS AFFECTING SOLUBILITY: ^[19,20]

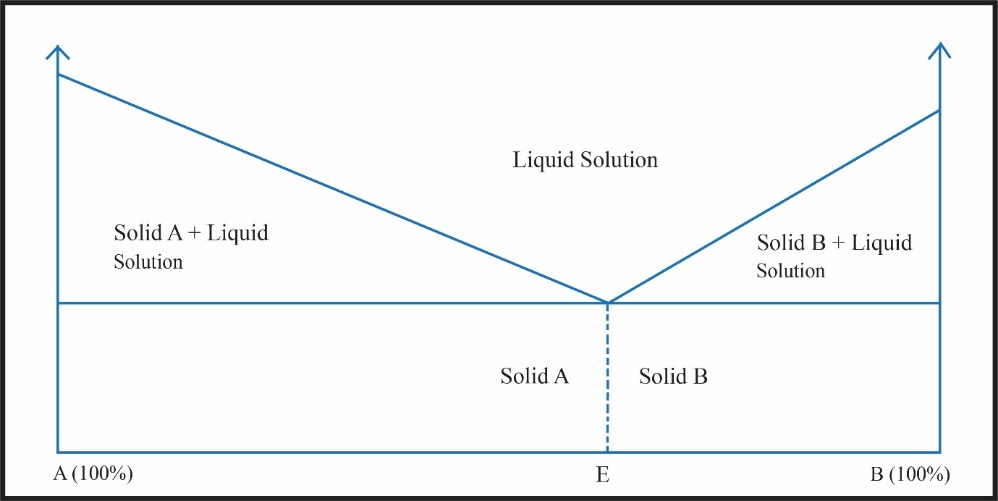

Figure 2: Simple Eutectic Mixtures

2. Amorphous Precipitation In A Crystalline Carrier:

This method improves solubility and dissolution rates by precipitating the drug in an amorphous state within a crystalline carrier, as opposed to eutectic mixes, where the drug stays in a crystalline form. Example Sulfathiazole precipitated in crystalline urea, leading to faster dissolution in water.^[4,8]

Figure 3: Amorphous Precipitation in a Crystalline Carrier

3. Solid Solutions:

A solid solution is a system in which two components co-crystallize creating a homogeneous single-phase structure. In this dispersion the drug is molecularly dispersed resulting in a dissolving rate that is significantly faster than that of eutectic mixtures.^[4]

SOLID SOLUTIONS CAN BE CLASSIFIED BASED ON MISCIBILITY AND MOLECULAR DISTRIBUTION:

1. Classification Based on Miscibility:

• Continuous Solid Solutions: The components fully integrate in the solid state creating a uniform phase with enhanced intermolecular interactions compared to the individual components.
• Discontinuous Solid Solutions: One component has limited solubility in the other meaning they do not form a homogeneous mixture in all proportions.

2. Classification Based on Molecular Distribution:

• Substitutional Solid Dispersions: Drug molecules replace some carrier molecules within the crystal lattice.
• Interstitial Solid Dispersions: The crystalline structure of the carrier has interstitial gaps that are occupied by drug molecules.
• Amorphous Solid Dispersions: Drug molecules are randomly distributed within an amorphous (non-crystalline) carrier  improving solubility and bioavailability.

This technique is very helpful for improving the solubility and absorption of drugs that are not very soluble in water.

4. Glass Solutions And Suspensions:

A glass solution is a clear glass-like mixture in which the drug (solute) has completely dissolved in a matrix of carriers. When drug particles are suspended in a glassy carrier without completely dissolving, this is known as a glass suspension. The glassy state is recognized for its brittleness and transparency at temperatures below the glass transition temperature. Unlike crystalline solids Glassy materials lack a distinct melting point and instead undergo a gradual softening process. One of the key benefits of glass solutions is their lower lattice energy making it easier for the drug to dissolve compared to traditional solid solutions. This technique significantly enhances drug solubility and bioavailability.^[4,8]

5. Compound Or Complex Formation:

In this approach, the drug and carrier form a strong complex in an aqueous medium improving solubility and dissolution. Example Cyclodextrins are commonly used to create drug complexes enhancing their bioavailability. Using a low to moderate concentration of the carrier improves dissolution efficiency. If a higher carrier concentration is used in a solid solution may  further enhancing drug dissolution. This technique is especially beneficial for drugs with poor water solubility helping them achieve better therapeutic effectiveness.^[4,8]

VARIOUS METHODS USED FOR PREPARATION OF SOLID DISPERSION:

1. Melting Method (Fusion Method):

The melting procedure, sometimes referred to as the fusion technique involves mixing a medication with a water-soluble carrier and heating the mixture until it completely liquefies. It is rapidly cooling in an ice bath after melting, stirring constantly. After that  the solidified substance is broken. To create a fine powder  ground  and sieved. The molten mixture is usually spread as a thin layer on a metal plate like stainless steel to increase the uniformity of dispersion. On the other side cooling is aided by circulating water or air. This rapid cooling process known as the quenching technique helps immobilize the drug molecules within the carrier promoting finer dispersion and minimizing crystallization. However a major drawback of this method is that some drugs or carriers may degrade at high temperatures or lose volatile components due to evaporation. The fusion process can be carried out in a vacuum sealed container or in an environment with inert gases (like nitrogen) to minimize oxidation and deterioration in order to avoid these problems. Solid dispersions are frequently made using this technique to increase medication solubility and bioavailability.^[4]

Example: Fenofibrate + Polyethylene Glycol (PEG) Fenofibrate is melted with PEG 6000 and solidified to form a solid dispersion. The resulting dispersion enhances solubility and dissolution rate.

2. Solvent Evaporation Method:

The solvent evaporation method is a usually used approach in pharmaceutical formulations notably for creating microparticles, nanoparticles, and solid dispersions. This process includes dissolving both the drug and polymer in a suitably volatile organic solvent or a combination of solvents. Once a clear and homogeneous solution is formed it is emulsified into an aqueous phase containing a stabilizer or surfactant under continuous stirring. The organic solvent gradually evaporates due to continuous agitation and sometimes mild heating leading to the precipitation of the polymer which encapsulates the drug. As the solvent is removed solid particles are formed which can be collected by filtration or centrifugation followed by drying. The main advantage of this technique is that it operates under mild conditions which is ideal for thermolabile drugs. Additionally the method allows for good control over particle size and drug loading efficiency. However, selecting appropriate solvents and stabilizers is critical to ensure biocompatibility and complete removal of residual solvents, which can otherwise pose toxicity concerns.^[3,11]

3. Melting-Solvent Method:

This process blends melting and solvent methods. After dissolving the drug in a solvent it is combined with melted polyethylene glycol (PEG). The solvent is then evaporated leaving behind a solid dispersion. PEG 6000 can accommodate up to 5-10% (w/w) of liquid compounds without compromising its solid-state characteristics. However, drug and solvent compatibility with PEG is important. The solvent used may alter the drug’s polymorphic form which can affect its properties. Although this process combines the advantages of solvent evaporation and fusion (melting) it works best with drugs that have a modest therapeutic dosage (less than 50 mg).^[3,11]

4. Melt Extrusion Method:

Using this method the drug and carrier are combined and then run through a twin-screw extruder. The substance is melted mixed, and then formed into various shapes including tablets, pellets, pellets, sheets, and powders. This method's main advantage is that the drug is exposed It is appropriate for medications that are heat-sensitive because it is exposed to high temperatures for a brief period of time (around one minute).

Process Details: The drug concentration in the solid dispersion is usually 40% (w/w) the screw extruder has different zones for mixing and transporting the material. The temperature zones range from 100°C to 185°C to ensure proper melting and processing. After extrusion, the material is cooled, cut, and sieved to obtain the desired particle size. This method provides consistent drug distribution and enhances bioavailability making it widely used in pharmaceutical applications.^[4,5]

Example: Fenofibrate + Kollidon VA64 Fenofibrate is mixed with Kollidon VA64 and processed using hot-melt extrusion. The dispersion improves drug release and bioavailability.[23]

5. Lyophilization Technique (Freeze-Drying):

A sophisticated method called lyophilization often known as freeze-dryin, is used to increase the stability and solubility of drugs that are not very soluble in water. It entails quickly freezing the solution after dissolving the drug and a hydrophilic carrier in the proper solvent. The frozen mixture is then subjected to vacuum drying allowing solvent removal without heat exposure. This process maintains the drug’s structural integrity while forming a highly porous dispersion leading to enhanced dissolution rates. Example: Fenofibrate + Polyvinylpyrrolidone (PVP) Fenofibrate which does not dissolve easily in water is mixed with PVP and dissolved in a water-based solution. The solution is rapidly frozen and subjected to vacuum drying which removes the solvent resulting in a porous high-surface-area dispersion. This process improves wettability, enhances solubility, and facilitates better drug absorption in the body. Advantages of Lyophilization^[3,5]

6.Vial Freeze-Drying Process:

Lyophilization another name for vial freeze-drying is a carefully regulated process used to increase the solubility and stability of medicinal components. The active drug is first dissolved at a predetermined concentration in a suitable solvent. At the same time the carrier material is dissolved in water to prepare a separate solution. These two solutions are then combined in a 40:60 volume ratio to form a uniform mixture before undergoing the freeze-drying process. Once the mixture is prepared, it is rapidly frozen by immersing it in liquid nitrogen until it solidifies completely. By altering the carrier concentration while maintaining a constant drug concentration the drug concentration in the finished solid dispersion can be changed.^[11]

7. Melt Agglomeration Process:

The melt agglomeration technique is commonly used to prepare solid dispersions, where the binder functions as both an adhesive and a carrier. This method involves two primary approaches^[4,5]

Melt-In Procedure: The binder, drug, and excipients are heated together until the binder reaches its melting point allowing the ingredients to mix thoroughly.

Spray-On Procedure: The drug is dispersed in a melted binder and then spray-coated onto warmed excipients using a high-speed mixer among these techniques  a rotary processor is often preferred over high-shear melt agglomeration because it provides improved temperature regulation and makes it possible to add more binder to the agglomerates.

8. Electrospinning Technique:

An inventive method for turning a polymeric melt or solution into solid fibers is electrospinning. This technique uses a tiny nozzle to extract ultra-fine fibers from a liquid solution or molten polymer using a high-voltage electrostatic field. The polymer the fibers are gathered on a conductive screen, and the solution is contained in a reservoir that is linked to a conductive capillary. Electrospinning is a process that uses high-voltage electricity to create ultra-fine polymer fibers. When an electric charge is applied to a liquid polymer solution, it forms a charged jet that stretches and thins as it travels through the air. The solvent evaporates mid-flight, leaving behind solid nanofibers that collect on a grounded surface, forming a delicate and web-like material. This technique is widely used in medicine, filtration, and textiles to produce materials with high surface area and unique properties.^[4,5,6]

9. Supercritical Fluid (SCF) Technology

Supercritical fluid (SCF) technology is an advanced method used for particle size reduction and enhancing drug solubility. This technique utilizes carbon dioxide (CO?) as both a solvent and an antisolvent, depending on its interaction with the drug and organic solvent. Various micronization processes have been developed using SCF technology including:

• Aerosol Solvent Extraction System (ASES)
• Precipitation with a Compressed Fluid Antisolvent (PCA)
• Gas Antisolvent (GAS) Process
• Solution-Enhanced Dispersion by Supercritical Fluids (SEDS)
• Supercritical Antisolvent (SAS) Process

SAS Process Mechanism

A drug-and-organic solvent solution is sprayed into a continuous supercritical CO? phase in the Supercritical Antisolvent (SAS) method. The medication precipitates as ultra-fine particles as the solvent is quickly removed by the CO?.^[5]

10. Spray Drying Technique

Spray drying is a popular method for quickly evaporating fluids to create solid dispersions.

Process Steps: Solution Preparation – Dissolve the drug in an organic solvent and the carrier in water. Dispersion & Spraying – A peristaltic pump is used to feed the prepared dispersion via a nozzle at a predetermined flow rate. Drying and Particle Formation: The solution is spray-dried at 65–70°C for the outlet and at 120°C for the input. Collection – The dried powder is collected using cyclone separation and transferred into vials for storage.^[4]

11. High-Pressure Homogenization

Using this method, drug particles are dispersed in a solution of surfactants and then run through a high-pressure homogenizer. Drug microparticles are broken up into nanoparticles by the strong cavitation force increasing their solubility and bioavailability.^[5]

12. Polymorphic Alteration

Different crystalline forms of a drug with distinct physical characteristics including as stability, solubility, and bioavailability, are called polymorphs. To guarantee consistent drug performance the most thermodynamically stable polymorph must be chosen.^[3]

13. Inclusion Complexes

Inclusion complexes are formed by trapping drug molecules within a host molecule such as Cyclodextrins, to improve solubility and bioavailability. ^[3]

Preparation Methods:-

• Kneading Technique: After combining the medication and polymer with a tiny bit of water to create a thick paste it is dried and sieved.
• Co-Precipitation: The drug is dissolved in β-cyclodextrin solution under agitation and the precipitate is separated and dried.
• Neutralization: The drug is first dissolved in an alkaline solution (e.g., NaOH) followed by the addition of β-cyclodextrin. After neutralization with HCl an inclusion complex precipitate forms.
• Co-Grinding: The drugs and carrier are combined with a tiny bit of water, sieved, and vacuum-dried.
• Spray-Drying Method: After dissolving the drug and β-cyclodextrin in an appropriate solvent they are combined and dried with a spray dryer.
• Microwave Irradiation: A novel technique where the drug and cyclodextrin mixture is exposed to microwave energy enabling rapid complex formation.

APPLICATIONS OF SOLID DISPERSION TECHNIQUE:

1. Poorly soluble drugs struggle with low bioavailability. Solid dispersions increase drug surface area and improve wettability leading to better dissolution rates.
2. Solid dispertion technique enhancing dissolution drugs achieve higher systemic absorption resulting in better bioavailability compared to conventional formulations.
3. Solid dispersions when combined with suitable carriers aid in controlled or prolonged medication release, lowering dosage frequency and improving patient compliance.
4. Some drugs exist in a metastable amorphous state, which can revert to a crystalline form, affecting solubility. Solid dispersions help stabilize amorphous drugs ensuring long-term stability.
5. Bitter drugs can be unpleasant for patients. Solid dispersions encapsulate the drug, reducing bitterness and improving patient acceptability.
6. Class II drugs in the Biopharmaceutical Classification System (BCS) have good permeability but poor solubility. Solid dispersions improve total absorption by increasing solubility.
7. Hydrophobic drugs struggle with poor dissolution. Solid dispersions with hydrophilic carriers significantly increase their solubility.
8. Patients with gastrointestinal (GI) disorders, such as Crohn’s disease often have poor drug absorption. Solid dispersions improve drug uptake, making them more effective ^[4,5]

CHARACTERIZATION OF SOLID DISPERSION:

1. Drug Content Uniformity — to ensure uniform distribution of drug in the carrier.
2. Solubility Studies — to assess enhancement in drug solubility.
3. Dissolution Studies — to evaluate improvement in dissolution rate.
4. Fourier Transform Infrared Spectroscopy (FTIR) — to detect possible drug–carrier interactions.
5. Differential Scanning Calorimetry (DSC) — to study thermal behavior and crystallinity changes.
6. X-ray Diffraction (XRD) — to determine changes in crystalline or amorphous nature.
7. Scanning Electron Microscopy (SEM) — to examine surface morphology.
8. Particle Size Analysis — to measure particle size and distribution.
9. Stability Studies — to evaluate physical and chemical stability over time. ^[3,4,5]

CONCLUSION

A significant number of newly developed pharmaceutical compounds exhibit poor water solubility which directly impacts their oral absorption and therapeutic effectiveness. Since the dissolution rate plays a crucial role in drug absorption enhancing solubility and bioavailability remains a key challenge for pharmaceutical scientists. Among the various approaches explored solid dispersion has emerged as one of the most effective and widely studied techniques for overcoming these limitations. Despite its proven benefits, the large-scale commercial application of solid dispersion technology still faces challenges, including scalability, cost-effectiveness, and stability concerns for certain drugs. Ongoing research and advancements in formulation strategies and manufacturing techniques are essential to overcome these barriers. If these issues are successfully addressed solid dispersion technology holds immense potential in revolutionizing drug formulation, ensuring better therapeutic outcomes, and enhancing the efficacy of poorly soluble drugs.
