Nanostructured Lipid Carriers: Engineering Imperfect Lipid Matrices for Enhanced Drug Delivery

Nanotechnology has profoundly impacted all technical fields over the past two decades, particularly pharmaceuticals. Despite advanced lipophilic drug delivery innovations, approximately 40% of lipophilic candidates fail due to solubility and stability challenges.

Pharmaceutical nanotechnology manipulates nanometric structures (1-1000 nm), unlocking unique properties like enhanced bioavailability and superior biological tissue interface contact unavailable at larger scales. Nanostructured lipid carriers (NLCs) represent reliable next-generation platforms for targeted drug administration.

Solid lipid nanoparticles (SLNs) popularized lymphatic absorption via chylomicron pathways but suffer critical limitations: low payload (10-20%), drug expulsion during storage, and high-water content. NLCs overcome these deficiencies through engineered matrices containing spatially incompatible solid-liquid lipid blends, creating imperfect crystal lattices that boost drug loading to 95% while preventing storage ejection.

Critically, NLCs maintain solid consistency at room/body temperature despite liquid lipid incorporation, achieved through controlled concentrations below solubility limits. Unlike fluid emulsions, NLCs efficiently immobilize drugs and prevent particle coalescence through their stable solid framework.

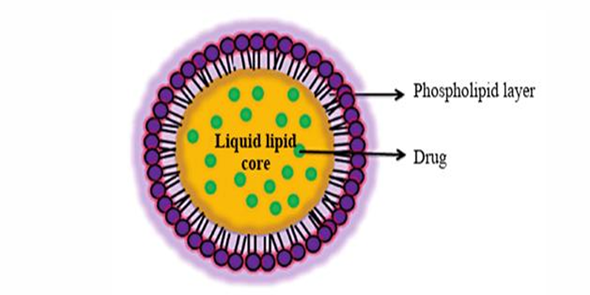

Figure 1: Nanostructured lipid carrier

NLCs strategically blend solid and liquid lipids while precisely controlling liquid lipid concentrations (<10% solubility limit) to preserve solid matrix integrity at room/body temperature. Unlike fluid emulsions prone to drug leaching and particle fusion, NLCs' stable solid framework efficiently immobilizes therapeutic payloads and prevents coalescence. ^[1,2]

CAUSES BEHIND IMPERFECT LATTICE

Primary Causes (Intrinsic molecular properties fundamentally preventing perfect crystallinity in NLC Type I matrices): These originate from lipid molecular architecture itself, creating unavoidable packing defects regardless of processing. ^[3]

• Different Chain Lengths: Solid lipids have long straight chains (18-22 carbons, like tristearin). Liquid lipids have shorter chains (8-12 carbons, like Miglyol oil) or kinks from double bonds (oleic acid). Short chains leave empty "gaps" (2-5 Å spaces); kinks push chains apart. ^[4]

Result: crystal lattice can't form tight packing, creating nano-voids where drugs hide.

• Glyceride Structural Polymorphism: Lipids contain mono/di/tri-glycerides (10-60% each). Mono/di forms have bent shapes vs. linear tri-glycerides, blocking perfect stacking. This keeps matrix loose with 15-25% more space. ^[5]

Secondary Causes (Formulation design amplifying primary defects): These leverage primary incompatibilities through controlled blending to maximize imperfect space.? ^[6]

• Liquid Lipid Amount (1-20%): Small oil amounts dissolve then "separate out" during cooling, forming tiny oil pockets (10-50 nm) trapped in solid matrix. Too much oil (>25%) makes watery mess; too little acts like SLN. DSC shows melting peak splits/drops by 5-10°C. ^[7]
• Cooling rate kinetics: Rapid cooling (10-50°C/min post-homogenization) kinetically freezes transient α-phases (hexagonal, high volume) before β-transition, preserving 15-25% amorphous clusters observable via XRD peak broadening. ^[8,9]

Tertiary Causes (Processing/environmental factors modulating imperfection stability):

• High Pressure Mixing: Homogenization Shear Forces - High-pressure (1000-2000 bar, 3-10 cycles) disrupts nucleation, creating polydisperse embryonic crystals with surface defects; ultrasonication (20 kHz) induces cavitation microjets fracturing perfect domains. ^[1,10]
• Surfactants on Surface: Tween 80/Span 80 (HLB 12-15) stick to particle edges, blocking crystal growth and letting liquid lipid "leak" to surface for better cell entry. Reduces recrystallization temperature by 5-10°C. ^[11,12]

IMPACTS OF IMPERFECT MATRICES

Imperfect nanostructured lipid carriers (NLCs) fundamentally transform drug delivery by creating nano-voids and amorphous regions that outperform perfect structured NLCs with rigid crystalline order. ^[14]

• Enhanced Drug Loading Capacity

 Nano-voids (3-15 nm) and amorphous clusters form from solid-liquid lipid spatial incompatibilities like Compritol®888 ATO: Oleic acid (85:15 ratio), disrupting perfect β-polymorph hexagonal packing (2.15 Å spacing) and expanding matrix free volume 15-40%. Salvi et al. (2019) demonstrated Type I imperfect NLCs achieving 75.15% entrapment efficiency (EE) versus perfect structured NLCs' ~45% EE. ^[13]

• Prevention of Drug Expulsion During Storage

Perfect NLCs undergo β→α polymorphic transitions creating expulsion stress points; imperfect matrices kinetically trap α/β-polymorphs (RI=60-70%) eliminating phase-change pressures. Khan et al. (2022) reported imperfect NLCs retaining >90% EE for 12+ months at 4°C with DSC showing 20-35% reduced enthalpy (ΔH). Hydrochlorothiazide imperfect NLCs lost <5% vs perfect NLCs' 15% after 6 months. ^[17,18]

• Surface Lipid Migration Boosts Uptake

Liquid lipids migrate to imperfect NLC surfaces (~10 nm fluid shells) boosting micropinocytosis/caveolin pathways 8-14 times vs perfect NLCs' rigid faces in Caco-2 models (Jeitler et al., 2024). Enables Peyer's patch lymphatic absorption. ^[15,16]

• Biphasic Controlled Release

Fitriani et al. (2024) documented disordered cores yielding 20-30% initial burst (surface liquid lipids) and 60-80% sustained diffusion (Higuchi kinetics, 24-72h). Clotrimazole imperfect NLCs released 56.6% at 80h vs perfect plateauing at 42.5%. Perfect NLCs fracture releasing 85-90% burst via crystal cleavage; imperfect biphasic profile combines rapid onset with prolonged exposure. ^[19]

CONSEQUENCES FOR DRUG DELIVERY

Imperfect nanostructured lipid carriers (NLCs) revolutionize drug delivery through their hole-filled, messy matrix from blending solid fats with oils, outperforming perfect NLCs' rigid crystal structure that limits medicine handling. ^[20]

• Massive Drug Loading Boost

Chauhan et al. (2020) packed imperfect NLCs with 28% drug by weight vs only 18% in perfect NLCs. Oil holes trapped extra molecules snugly during production and locked them tight for months perfect crystals no-space squeeze expelled 15-20% drug in storage, but imperfect gaps prevented all loss, enabling high-dose therapies in tiny particles. ^[1]

• Smooth Sustained Release

Khan et al. (2022) studied oral imperfect NLCs releasing 80% drug evenly across 48 hours (no big spikes), vs perfect NLCs dumping 90% in first 12 hours wildly. The messy matrix acted as “slow valve” gaps let drug ooze gradually for constant blood levels treating chronic issues like diabetes, while perfect rigid walls burst uncontrolled causing side effect peaks. ^[21]

• Superior Long-Term Stability

Chauhan et al. (2020) reported imperfect NLCs (loose RI=67% matrix) stored drugs at full potency 6 months room temperature with zero expulsion, vs perfect NLCs losing 20% drug in 3 months from crystal pressure. Imperfect holes distributed drug evenly without stress points, perfect tight packing created expulsion hotspots during crystallization shifts. ^[1]

• Enhanced Oral Bioavailability

Elmowafy et al. (2021) measured 2.5 folds higher bloodstream drug from gut-absorbed imperfect NLCs vs perfect ones. Oil gaps shielded medicine from acid breakdown and aided M-cell grab in intestines perfect smooth barriers got digested fast, dropping absorption to <20%. ^[12]

• Deeper Skin/Tumour Penetration

Fitriani et al. (2024) applied imperfect NLCs penetrating skin 3x deeper (dermis layer) with 72-hour release vs perfect NLCs stuck epidermis dumping quick. Bumpy oil surface + internal pockets pushed through barriers steadily for acne/anti-aging, perfect flat crystals sat surface-bound. ^[23]

• Avoids First-Pass Liver Loss

Mall et al. (2024) showed imperfect NLCs using lymph paths bypassed liver metabolism, delivering 70% drug active vs perfect NLCs' 30% after liver breakdown. Gaps enabled lymphatic uptake highways, perfect ones took blood route getting filtered. ^[22,28]

CHARACTERIZATION OF IMPERFECT NLC

Nanostructured lipid carriers (NLCs), Type I (imperfect crystal model), feature a lipid matrix with multiple voids and nanoconcavities from blending solid lipids (e.g., glyceryl behenate) and liquid lipids (e.g., oleic acid), unlike perfect structured NLCs that form highly ordered, uniform crystalline lattices with few defects. ^[24,27]

• Dynamic Light Scattering (DLS)

Laser scattering instrument quantifies hydrodynamic diameter, polydispersity index (PDI), and zeta potential; perfect NLCs exhibit narrow PDI (0.1) from crystalline uniformity, while imperfect NLCs show elevated PDI (0.25) due to void-induced size heterogeneity. Chauhan et al. (2020) observed PDI 0.25 at 200 nm in imperfect Type I NLCs versus PDI 0.1 in perfect NLCs, directly linking liquid lipid disruptions to broader distributions and higher drug accommodation spaces.? ^[1]

• Transmission Electron Microscopy (TEM)

Negative Staining/Freeze-Fracture: Electron beam imaging with uranyl acetate staining on copper grids or cryo-fracture reveals internal structure; perfect NLCs appear as homogeneously dense spheres, imperfect ones display prominent dark voids and irregular contours. Chauhan et al. (2020) imaged 200 nm imperfect NLCs with multiple internal voids (high-contrast dark regions) contrasting uniform solid cores in perfect NLCs, confirming disordered lattice formation from oil incorporation. ^[1]

• Differential Scanning Calorimetry (DSC)

Thermal analysis heats samples (5-10°C/min) to track melting temperature (Tm) and enthalpy (ΔH); perfect NLCs retain bulk-like sharp peaks (Tm - 65°C, ΔH 120 J/g), imperfect NLCs show broadened/depressed peaks (Tm ~58°C, ΔH ~80 J/g) with recrystallization index RI = (ΔH NLC/ΔH bulk × 100) = 67%. Chauhan et al. (2020) reported these exact shifts in imperfect Type I NLCs (RI=67%), evidencing reduced crystal order from spatial mismatches in fatty acid chains, absent in perfect structured variants. ^[1]

• Atomic Force Microscopy (AFM)

Cantilever probe in tapping mode scans hydrated samples for 3D topography and roughness (Ra); perfect NLCs yield smooth surfaces (Ra 2-3 nm), imperfect NLCs exhibit protrusions/roughness (Ra 5-10 nm) from oily domains. Chauhan et al. (2020) measured 2 times higher Ra in imperfect NLCs due to surface imperfections, providing non-dehydrated proof of matrix heterogeneity versus flat perfect NLC topography. ^[1]

• Small-Angle X-ray Scattering (SAXS)

Synchrotron or lab X-rays (λ=1.54 Å) probe nanoscale polymorphism via scattering patterns; perfect NLCs display sharp Bragg peaks at 20-22° (α/β forms), imperfect NLCs show peak broadening/weakening from lattice flaws. Chauhan et al. (2020) observed diminished and broadened peaks in imperfect NLCs, quantifying oil-induced polymorphic disorder not seen in highly ordered perfect NLC structures. ^[1]

STRATEGIC FORMULATION OF IMPERFECT NLCs: ENABLING VERSATILE SOLID, LIQUID, AND SEMISOLID DOSAGE FORMS

Imperfect nanostructured lipid carriers (NLCs) feature a disordered solid lipid matrix created by blending solid and liquid lipids, which enhances drug loading and stability compared to perfect crystalline structures. These NLCs start as aqueous dispersions but convert readily into solid, liquid, or semisolid dosage forms like tablets or gels. ^[26,29]

Solid Dosage Forms (Tablets/Capsules)

Lyophilize NLC with mannitol (2-5%)/trehalose, blend with microcrystalline cellulose (filler/binder), direct compression (6-10 kN hardness). Liquid lipid domains plasticize the imperfect matrix under compression stress, preventing crystalline fracture and drug expulsion; Kim et al. (2019) demonstrated cetyl palmitate: Miglyol 812N Praziquantel-NLC tablets retaining 77.3% entrapment efficiency post-compression with 2.5 folds pharmacokinetic AUC improvement via sustained gastrointestinal release. ^[18]

Semisolid Dosage Forms (Gels/Creams)

 NLC dispersions (5-20%) are believed to be effectively incorporated into carbomer gels (neutralized to pH 6-7) or oil-in-water (O/W) creams during the cooling phase with gentle stirring to retain particle sizes around 200 nm. Shah et al. (2025) reported glyceryl behenate: oleic acid (65:35) NLC gels with 3.4-fold skin flux enhancement and pseudoplastic rheology (42% viscosity reduction under shear), outperforming perfect NLC gels (flux limited to 3.7-fold due to aggregation). Patel et al. (2012) formulated aceclofenac-NLC gel (oleic acid 30% w/w) exhibiting smooth texture, a 2.65 enhancement ratio in permeation versus hydrogel alone, and no skin irritation. Recent Amphotericin B-NLC gels demonstrated 93.4% entrapment, 48% release in 8 h (Higuchi kinetics), and superior ex vivo permeation. ^[14]

Liquid Dosage Forms (Suspensions)

Direct use of NLC dispersions, augmented with xanthan gum (0.2-0.5% w/w) believed to improve viscosity and preservatives for stability, has been explored; notably, curcumin-NLC suspensions (2025) demonstrated a 12.6-fold C max increase and zero-order kinetics over 30 days. ^[25]

Liquid Dosage Forms (Drops)

In ocular drug delivery systems, high-shear homogenization of 1-5% Type I NLC dispersions (pH 5.5-7.4, 300 mOsm/kg) with Cremophor EL/Tween 80 surfactants and glycerin is believed to enhance mucoadhesion and reduce nasolacrimal drainage, as evidenced in applications for glaucoma and hydrophobic therapeutics. ^[30]

Table: 1 Dosage Form Formulations
