Calibration is the systematic process of confirming and modifying an apparatus' performance to ensure accuracy, precision, and reliability. It is crucial in industries like manufacturing, healthcare, and pharmaceuticals, where accurate measurements are vital. Calibration prevents errors, maintains quality control, and ensures regulatory compliance. This overview covers the importance and frequency of calibration, as well as associated protocols and standards. Key topics include calibration types, equipment-specific calibration (e.g., pH meters, refractometers) and quality assurance. By grasping calibration concepts and procedures, organizations can guarantee the accuracy and reliability of their equipment.
Calibration is defined by the International Bureau of Weights and Measures defines calibration as the process of establishing a connection between measurement standards and equivalent indicators of an instrument that has been calibrated. A comparison between measurements of known magnitude or accuracy obtained using a standard device and another measurement produced using a second device can also be referred to as calibration. The ultimate goal of calibration is to verify for zero error deflection by adjusting observed data to match with a standard value within a given accuracy.1

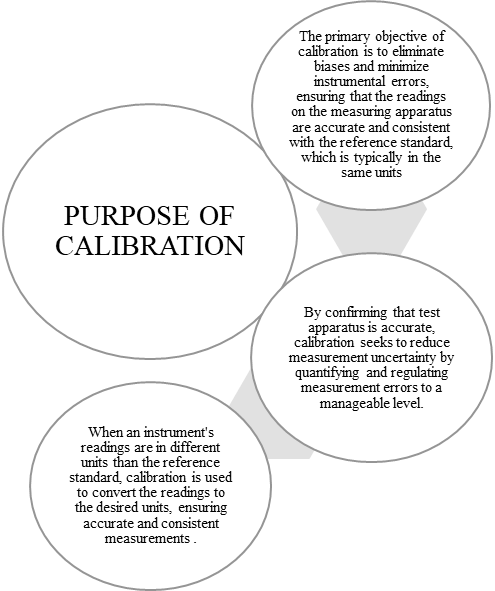

Calibration achieves two key objectives: verifying the accuracy of an instrument and establishing the traceability of measurements, ensuring reliable and consistent results2
Precision refers to the consistency of repeated measurements under unchanged conditions, where results show minimal variation. Accuracy, on the other hand, refers to the closeness of measurements to the true value of a quantity, reflecting how closely the outcome matches the true value3

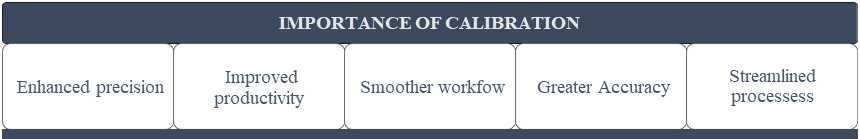

Calibration of instruments is essential for three primary reasons: (1) to ensure consistency with other measurements, (2) to verify the accuracy of instrument readings, and (3) to establish the reliability of the instrument, thereby building trust in its measurements 4
CONDUCTOMETER
In chemistry and biology labs, a conductometer is an electrochemical instrument that measures a solution's electrical conductivity to ascertain the concentration of ions or other charged particles.5 An electrolyte solution's electrical conductivity depends on a number of variables, such as the ions' kinds, concentrations, mobility, and temperature. The mobility of ions, which is mostly determined by their concentration, provides the basis for the electrical conductivity measurement principle. Ohm's Law, which asserts that the strength of the current (i) is directly proportional to the potential difference (V) and inversely proportional to the resistance (R), is followed by the electrical conductance of a solution. It is written as 6
i = V/R
Conductometric cells are typically made of quartz or Pyrex and come in three types. The first type is for low-concentration measurements and features a jar with two platinum electrodes immersed in the solution. The second type is designed for precipitate reactions and includes a magnetic stirrer to prevent precipitates from adhering to the electrode surface, ensuring accurate readings7. The compact design of conductometric cells allows for easy immersion in solutions, making them a convenient tool for conductivity measurements8. Platinum (Pt) is commonly used to make conductometric electrodes, which have a surface area of 1 cm² with two electrodes spaced 1 cm apart. Platinum black is applied to the electrodes to enhance surface area and avoid polarization.9

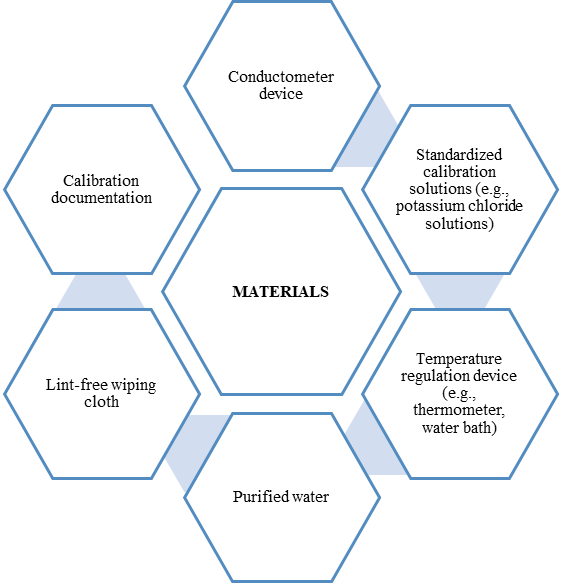

METHODS-
Single-Point Calibration Method
1. Set the conductometer to the optimal temperature.
2. Prepare a calibration standard (e.g., 0.01 M potassium chloride solution).
3. Measure the conductivity of the calibration standard.
4. Adjust the conductometer to display the correct conductivity value.
5. Verify calibration accuracy.
Multi-Point Calibration Method
6. Prepare multiple calibration standards (e.g., 0.01M, 0.1M, 1M potassium chloride solutions).
7. Set the conductometer to the optimal temperature.
8. Measure the conductivity of each calibration standard.
9. Record corresponding conductivity values.
10. Generate a calibration curve using recorded data.
11. Adjust conductometer settings as necessary.
Post-Calibration Protocol
1. Clean conductometer electrodes with purified water and lint-free cloth.
2. Store conductometer in a dry, cool environment.
3. Periodically verify calibration accuracy.
4. Recalibrate as necessary.
POTENTIOMETER
A potentiometer is a position sensor that measures displacement and monitors potential differences in electrochemical cells. In its digital form, known as a digipot, it utilizes digital signals to control and adjust resistance values in a circuit, providing precise and efficient control over electronic systems10. Potentiometry, a branch of electrochemistry, involves measuring changes in electrode potential during various reactions, including oxidation, reduction, and precipitation. This technique employs two measurement methods: direct and indirect. These methods rely on the quantitative relationship between the electromotive force (EMF) of a cell, expressed by the equation:
Ecell = Eref + Eind + Ej,
which forms the basis of potentiometric analysis11. Potentiometric analysis involves the use of three key components: a reference electrode with a known electric potential, an indicator electrode that develops a potential when immersed in a solution, and a salt bridge, typically filled with potassium chloride, which prevents mixing of the analyte and reference electrode components. Because the K+ and Cl- ions in potassium chloride have identical mobilities, the salt bridge is perfect12.

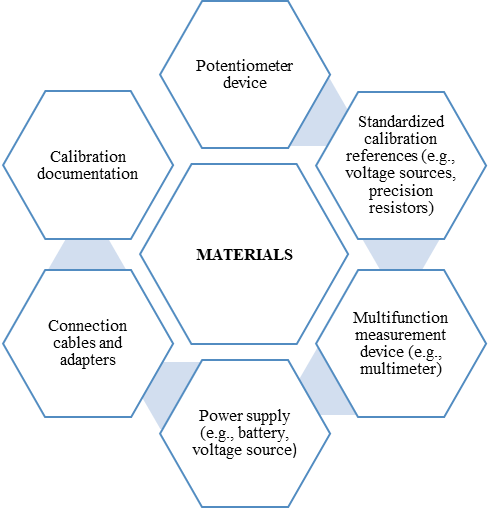

METHODS-
Zero-Point Adjustment Calibration
1. Connect the potentiometer to a known voltage reference.
2. Adjust the potentiometer's zero point to match the reference voltage.
3. Verify calibration accuracy using a multifunction measurement device.
Span Adjustment Calibration
1. Connect the potentiometer to a known voltage reference.
2. Adjust the potentiometer's span to match the reference voltage range.
3. Verify calibration accuracy using a multifunction measurement device.
Multi-Point Calibration
1. Connect the potentiometer to multiple known voltage references.
2. Record the potentiometer's output for each reference voltage.
3. Generate a calibration curve using recorded data.
4. Adjust potentiometer settings as necessary.
Post-Calibration Protocol
1. Verify calibration accuracy using a multifunction measurement device.
2. Document calibration data and store with calibration documentation.
3. Store potentiometer in protective environment.
4. Recalibrate potentiometer periodically (e.g., every 6-12 months).
pH METER
The hydrogen ion activity of water-based solutions is measured using a pH meter, a scientific device that determines how acidic or alkaline a solution is13. Using the potentiometry principle, a pH meter measures the electrical potential of a solution to calculate its pH, which is expressed as pH = -log[H+]. The operation of the instrument is founded on the Nernst equation, which links the concentration of ions in the solution and the electrical potential of an electrochemical cell14. A vital part of a pH meter, the glass electrode detects the potential difference between the internal and exterior reference electrodes to determine the pH of a solution. Since this potential difference is precisely proportional to the solution's pH, precise pH readings are possible15. Its main purpose is to supply a steady voltage against which the glass electrode's potential may be measured, allowing for precise pH measurement of the solution16.

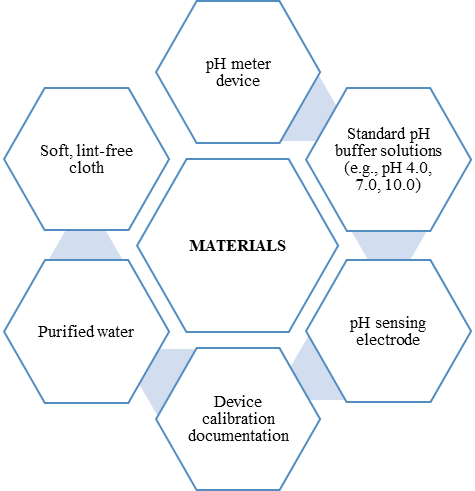

METHODS-
Single-Point Calibration
1. Rinse the electrode with purified water.
2. Immerse the electrode in the pH 7.0 buffer solution.
3. Adjust the pH meter to display pH 7.0.
4. Confirm the reading and document calibration data.
Two-Point Calibration
1. Rinse the electrode with purified water.
2. Immerse the electrode in the pH 4.0 buffer solution.
3. Adjust the pH meter to display pH 4.0.
4. Rinse the electrode and immerse it in the pH 10.0 buffer solution.
5. Adjust the pH meter to display pH 10.0.
6. Confirm the readings and document calibration data.
Multi-Point Calibration
1. Rinse the electrode with purified water.
2. Immerse the electrode in each buffer solution (e.g., pH 4.0, 7.0, 10.0).
3. Adjust the pH meter to display the corresponding pH value for each solution.
4. Confirm the readings and document calibration data.
Post-Calibration Protocol
1. Rinse the electrode with purified water.
2. Dry the electrode with a soft cloth.
3. Store the pH meter and electrode according to manufacturer guidelines.
4. Periodically verify calibration and recalibrate as necessary
COLORIMETER
A colorimeter is a piece of equipment used in laboratories to gauge the amount of colored compounds present in a solution. By going by light of a specific wavelength through the sample and measuring the absorbed light, the colorimeter determines the concentration of the colored substance. The higher the concentration, the more light is absorbed. Colorimeters have various applications, including water quality analysis, food color assessment, and determining dye and chemical concentrations, ensuring accuracy and consistency across industries17. A portion of the light is absorbed by the coloring materials and the remainder is transmitted when a monochromatic light beam travels through a colored solution. The intensity of the color, which is proportional to the concentration of the chemical analyte that produces the color, is directly correlated with the absorption of light. Colorimetric analysis, which measures the quantity of light absorbed by a solution to ascertain the analyte concentration, is based on this principle 18. An analytical tool called a colorimeter gauges how much light a sample can absorb or transmit. Its key components include a light source, monochromator, filter, sample cell, detector, amplifier, and readout device. Optional features may include a reference cell, thermoregulator, and stirrer. Modern colorimeters often incorporate advanced technologies, such as diode-array detectors and microprocessor-controlled systems, enabling automatic calibration and data analysis19.

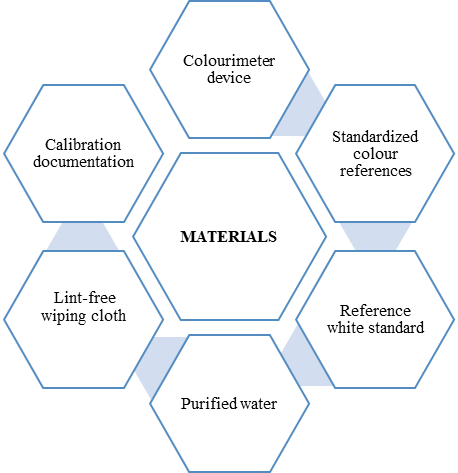

METHODS-
Single-Point Calibration Method
1. Measure reference white standard
2. Adjust colourimeter settings
3. Verify calibration accuracy
Multi-Point Calibration Method
1. Measure multiple standardized colour references
2. Generate calibration curve
3. Adjust colourimeter settings
4. Verify calibration accuracy
Post-Calibration Protocol
1. Clean colourimeter optics with purified water and lint-free cloth.
2. Store colourimeter in a dry, cool environment.
3. Periodically verify calibration accuracy.
4. Recalibrate as necessary.
REFRACTOMETER
Refraction occurs when a light beam passes from one medium to another with a different density, causing an abrupt change in direction due to the difference in light velocity between the two media. Snell's Law explains this occurrence by stating that the refractive index (n) of the medium is equal to the ratio of the sines of the angles of incidence (i) and refraction (r).20
n = sin i / sin r
Snell's law, which connects the angles of incidence and refraction to the velocities of light in two mediums, is used by a refractometer to determine a substance's refractive index. The refractive index is determined by measuring the angle of refraction after a light beam passes through the sample. computed, enabling precise measurements following calibration with a reference sample.21 A refractometer's instrumentation typically includes a monochromatic light source, prism or refracting surface, sample cell, photodetector, angle measurement system, electronic control unit, and display. Optional features may include temperature control, automatic sample handling, digital signal processing, and multi-wavelength measurement capabilities, enabling accurate and precise refractive index measurements22.

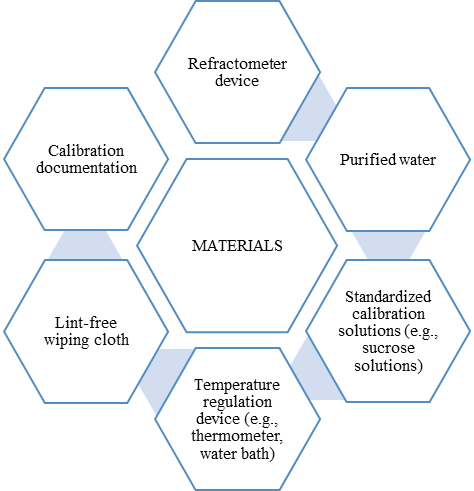

METHODS-
Single-Point Calibration Method
1. Set the refractometer to the optimal temperature.
2. Apply a few drops of purified water to the prism.
3. Adjust the refractometer to display 0° Brix (or corresponding refractive index).
4. Verify calibration accuracy.
Multi-Point Calibration Method
1. Prepare standardized calibration solutions with known Brix values.
2. Set the refractometer to the optimal temperature.
3. Apply a few drops of each calibration solution to the prism.
4. Record corresponding Brix readings.
5. Generate a calibration curve using recorded data.
6. Adjust refractometer settings as necessary.
Post-Calibration Protocol
1. Clean refractometer prism with purified water and lint-free cloth.
2. Store refractometer in a dry, cool environment.
3. Periodically verify calibration accuracy.
4. Recalibrate as necessary.
CONCLUSION AND RESULTS

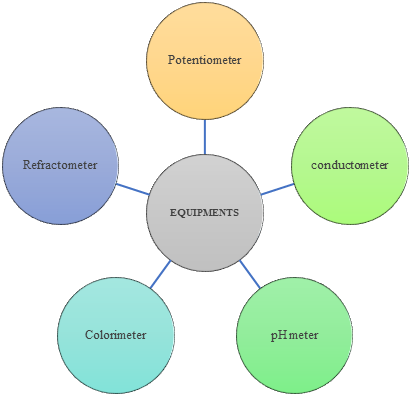

Calibration is a vital process that ensures the accuracy, precision, and reliability of measurements in various industries. It maintains optimal instrument performance, reduces errors, and guarantees compliance with regulatory standards. Proper calibration of analytical equipment, such as pH meters, potentiometers, refractometers, colorimeters, and conductometers, is crucial for preventing measurement errors, maintaining quality control, and ensuring regulatory compliance.
