Gastroretentive dose forms are oral formulations that have the ability to resist fast stomach emptying and stay in the GI system. These systems are perfect for drugs with a limited window of absorption. They are designed as formulations of modified-release drug delivery systems with the ability to modify the release rate and be site-constrained in the gastrointestinal tract (stomach). Several factors affect the effectiveness of gastroretentive drug delivery systems, such as the site of medication absorption, the length of stomach transit, and the impact of food. Oral dose forms with the ability to resist fast stomach emptying are referred to as gastroretentive dosage forms. They are designed to be retained in the GI system. These systems are perfect for drugs with a limited window of absorption. The efficiency of gastroretentive drug delivery systems is influenced by a number of variables, including dietary effects, stomach transit duration, and the medication's location of absorption. The simplicity of medication administration has a significant impact on compliance. When taking medication, a patient is more likely to adjust to it if it does not disrupt regular routines. Oral dose forms continue to be the best method of administration. This is a result of a variety of variables, such as the drug's convenience in storage and transportation, controlled distribution, formulation flexibility, and generally lower cost when compared to other dosage forms. The creation of a systematic drug that may be given in a single dosage form is the common goal of drug delivery systems. Particularly when the patient is required to take the drug in question on a regular basis throughout their lifetime. Reduced frequency of medical administration would also result from an integrated single unit dose form. Also, it should be mentioned. The mechanisms for oral medication administration involve a complicated absorption process. In order for the medication to be absorbed in the stomach, small intestine, or colon, it must be soluble in gastric fluid.

Alginate beads are multi-unit floating dosage forms beads made from freeze-dried calcium alginate. These can be made by dissolving sodium alginate solution into an aqueous solution of calcium chloride and watching calcium alginate precipitate. This process results in the formation of 2.5-mm-diameter spherical beads. Low-methoxylated pectin, cellulose acetate, polycarbonate, calcium alginate, Eudragit, and agar are a few of the polymers that were used to create these systems. By adding sodium alginate solution to a calcium chloride aqueous solution, calcium alginate can be precipitated to create spherical beads. Following the separation of the beads, a porous system that can sustain a floating force for more than 12 hours is created by snap-freezing them in liquid nitrogen and freeze-drying them at 40⁰C for 24 hours.

The Benefits of Floating Drug Delivery System.

• Drugs that are absorbed through the stomach benefit from the gastro-retentive system such as antacids and ferrous salts.
• Beneficial for drugs that act locally effective in the stomach, such as antacids.
• Because of the intestine's alkaline pH, floating medications of all kinds, including capsules and tablets, will remain in the fluid for a considerable amount of time.
• In order to retain the medication in a floating state in the stomach and promote a stronger response, the FDDS formulation is effective in promoting intestinal movement and diarrhoea. In order to increase patient compliance, FDDS decreases the dosing frequency.
• Care for gastrointestinal issues such as gastroesophageal reflux disease.
• Despite the first-pass effect, the plasma drug concentration has little impact on bioavailability.
• Hydrodynamically balanced system / Floating Drug Delivery System (HBS/FDDS) formulations may be helpful for administering aspirin and other medications of a similar nature because they are acidic and irritate the stomach.
• The medication is transported to a specific location. ^[1,7]

METHODOLOGY

Materials

Table 1: List of Materials

Methods:

Identification of Pure Metoclopramide Hydrochloride

Description:

Metoclopramide Hydrochloride white or almost white crystalline powder. Very soluble in water, freely soluble in alcohol.

Solubility:

Solubility of pure Metoclopramide Hydrochloride was checked in water.

Melting point of pure Metoclopramide Hydrochloride:

The sample obtained was characterized for melting of the substance. The melting point was determined by introducing small amount of substance in the capillary attached to graduated thermometer and constant heat was applied with assembly suspended in Thiele’s tube containing paraffin bath. The temperature required to melt the substance completely was noted.

Study of UV spectrum of pure Metoclopramide Hydrochloride: ^[17]

Accurately weighted 100 mg of Metoclopramide Hydrochloride was transferred in to the 100 ml volumetric flask and volume was made up to 100 ml with 0.1 N HCl. From this solution, 1 ml was withdrawn and added to the 10 ml volumetric flask and diluted to 10 ml with 0.1 N HCl. Finally, volume was scanned in the range of 200-400 nm. The wavelength of the maximum absorption was noted, and UV spectrum was taken.

 Study of IR spectrum of pure Metoclopramide Hydrochloride:

IR spectroscopy is one of the most powerful analytical techniques, which offers the possibility of detecting chemical interactions. The purity of the chemical was determined by analyzing the IR spectra of Metoclopramide Hydrochloride. A Fourier transform infrared spectrophotometer was used to record the IR spectra of Metoclopramide Hydrochloride. Utilizing dried potassium bromide, a baseline correction was made.

Standard curve of pure Metoclopramide Hydrochloride in 0.1N HCl ^[17]

Standard curve of Metoclopramide Hydrochloride in 0.1N HCl:

Accurately weighted 100 mg of Metoclopramide Hydrochloride was added to the 100 ml volumetric flask. Volume was made up to 100 ml with 0.1 N HCl (1000 µg/ml) pH 1.2. From this solution 1 ml was withdrawn and added into 10 ml volumetric flask and volume was made to 10 ml with 0.1 N HCl (100 µg/ml). This solution was used as stock solution. From the stock solution 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6 ml were withdrawn and added to 10 ml volumetric flask and finally diluted to 10 ml with 0.1 N HCl to get the solution with concentration of 1-10 µg/ml respectively. Each solution’s absorbance at 272 nm was measured using a UV-visible spectrophotometer. The graph was plotted for absorbance verses concentration

Compatibility study

IR spectral analysis:

Compatibility of drug with excipients was carried out using IR spectroscopy. The Infrared spectra of formulations recorded with KBr method were captured using Fourier Transform Infrared Spectrophotometer (spectrum one, made by Thermo Fisher Scientific India). A baseline correction was made by using dried potassium bromide. Scanning was done from 500 to 3500cm^-1

Differential Scanning Calorimetry (DSC) Thermal analysis:

 Differential Scanning Calorimetric analysis (DSC) was used to study the interaction between drug and polymer. Thermo-grams were recorded for pure Metoclopramide Hydrochloride and Metoclopramide Hydrochloride with the excipients to check the compatibility of Metoclopramide Hydrochloride with them using Differential Scanning Calorimeter (KEP Technologies, France) by using setaram software data acquisition. Under nitrogen purge with a constant flow rate of 5 ml/min, thermal analysis was carried out using an empty pan as a reference and a scan rate of 50⁰C per minutes from 20 to 500⁰C.

Factorial Design:

In statistics, a full factorial experiment is an experiment whose design consists of two or more factors, each with discrete possible values or "levels", and whose experimental units take on all possible combinations of these levels across all such factors. A full factorial design may also be called a fully-crossed design. In this method two or more factors are selected. The selected factors may also be called as variables. The number of selected factors is varied in each formulation at specific predetermined levels keeping the amount of other ingredients constant. These levels are selected with preliminary studies of factors. The levels could be selected as low/ medium/ and high and coded as -1 / 0 / +1. With the help of this method, one could detect the effect of individual variable in each formulation and also the combined or interactive effect of variables in each formulation. Thus, the factorial method is used to design the formulation and to evaluate the effect of factors in the formulation.

A study, in which there are 2 factors with 3 levels, is called a 3² factorial design. A 3² full factorial design (FFD) was constructed where the amounts of Sodium Alginate (X₁) and Poloxamer 188 (X₂) were selected as the factors. The levels of the two factors were selected based on the preliminary studies carried out before implementing the experimental design. All other formulation and processing variables were kept invariant throughout the study.

Table 2. Amount of variables in 3² factorial design batches

Table 3. A 3² full factorial experimental design layout

Method of Preparation of floating beads: [12,19,20]

Ionotropic Gelation Method:

Figure 1. Floating Beads of Metoclopramide Hydrochloride

 The floating beads of Metoclopramide Hydrochloride were prepared using the sodium alginate as gelling agent, calcium chloride as crosslinking agent, calcium carbonate as gas forming. Metoclopramide Hydrochloride alginate beads were made using the ionotropic gelation technique. Sodium alginate was dissolved in 100 ml of distilled water and stirred continuously. Next, polymer was added to the solution, shown in Table no. 7 and stirred up to 20 minutes. Metoclopramide Hydrochloride and calcium carbonate were added to the above solution. The mixture was set aside for 25 minutes to allow air bubbles to escape. This mixture was extruded into a solution of calcium chloride using a syringe. The beads were gathered, washed with distilled water, and then set to dry. A 32 factorial design was applied to develop the formulation. Sodium alginate (gelling agent) and poloxamer 188 (polymer) were selected as two factors. The amount of these two factors were varied at 3 different levels (as low, medium and high). Total nine formulations were prepared and the effect of two factors along with their combined effect were studied in the formulation.

Figure 2. Formulated Floating beads of Metoclopramide Hydrochloride

Table 4. Formulation of floating beads of Metoclopramide Hydrochloride.

In vitro evaluation of formulated floating beads of metoclopramide hydrochloride.

Uniformity of content: [49]

 The drug content of the beads was determined by taking 50 mg beads of each formulation. 50 mg from each formulation were accurately weighed and triturated in a mortar and pestle. In the 100 ml of 0.1N HCL, the beads powder was added. It was stirred for 2hours using a magnetic stirrer. From this solution, 1 ml was withdrawn and added to a 10 ml volumetric flask, and finally the volume was made to 10 ml with 0.1 N HCL (10?g/ml), then the solution was filtered with Whatman filter paper, and the absorbance of the resulting solution was measured at 272nm using a UV spectrophotometer.

Drug content = Actual drug content / Total Weight of beads ×100

Entrapment efficiency: [12]

 To make a fine powder, the beads were smashed with a mortar and pestle. Approximately 100 mg of powder was properly weighed and quantitatively placed into a 100-ml volumetric flask, and the volume was made up with 0.1 N HCL. After 24 hours, the solution was filtered using Whatman filter paper. 1 ml of filtrate was pipetted out and diluted to 10 ml. The solution was analyzed spectrophotometrically at 272 nm using a UV-visible spectrophotometer (Shimadzu Double beam UV 1800, Japan). The method's precision and accuracy were tested. The entrapment efficiency was determined using the following formula.

Drug entrapment = (Practical drug content / Theoretical drug content) 100

In Vitro buoyancy study: [12, 21]

50 individual floating beads were introduced to 100 ml of simulated stomach fluid (pH 1.2), which was kept at 37.50C and swirled at 100 rpm with a magnetic stirrer. The quantity of floating beads was visually counted every hour for the next 12 hours. The number of beads floated were calculated by the following equation.

% Floating beads = Floating beads / Total beads × 100

In vitro dissolution study: [12]

In vitro dissolution of Metoclopramide Hydrochloride floating beads was studied using the USP Type II paddle dissolution apparatus. Beads equivalent to 40 mg of metoclopramide hydrochloride were suspended in 900 ml of 0.1 N HCL (pH 1.2). The dissolution medium was stirred at 100 rpm and maintained at 37±0.5?C. 5 ml aliquots were withdrawn at a specific time interval with an equal volume of fresh, pre-warmed dissolution medium to maintain the sink condition. The samples were filtered through membrane filter paper, diluted appropriately, and examined at 272 nm with a UV Spectrophotometer (Shimadzu Double Beam UV1800 Japan). All dissolution tests were performed in triplicate.

Scanning electron microscopy (SEM) [21]

The morphological characteristics of metoclopramide hydrochloride floating beads were investigated using JSM 6330 JEOL (Japan) Scanning Electron Microscope. The sample for this investigation was prepared by dusting microsphere powder on two-fold sticky tape that was fastened to an aluminum stub. The analyzer also recorded photomicrographs with a 2000A thickness and gold covering around the stub using a sputter coater.

DATA ANALYSIS:

The effect of formulation variables on the response variables were statistically evaluated by applying ANOVA at 0.05 level using a commercially available software package Design-Expert® version 360 (Stat-Ease Inc.). To describe the response surface curvature, the design was evaluated by quadratic model, which bears the form of equation:

Y = b0 + b1X1 + b2X2 + b3X12 + b4X22 + b5X1X2……………

Where, Y is the response variable, b0 the constant and b1, b2, b3, b4, b5 the regression coefficient. X1 and X2 stand for the main effect; X1X2 are the interaction terms, show how response changes when two factors are simultaneously changed. X12 and X22 are quadratic terms of the independent variables to evaluate the nonlinearity.

The polynomial equation was established by applying ANOVA using the Design-Expert software version 7.1.6. Also, the data were subjected to 3-D response surface graph and contour plots to study the interaction of independent variables i.e., Sodium Alginate (X1) and Poloxamer 188 (X2) on dependent variable.

RESULTS AND DISCUSSION

Characterization of Drug

Description:  Metoclopramide Hydrochloride is a white or almost white odorless powder.

Solubility: Freely soluble in alcohol, very soluble in water.

Taste: Metoclopramide Hydrochloride is intensely bitter in taste.

Melting point: Melting point of Metoclopramide hydrochloride was found to be 1020C

UV Spectrophotometry of the Metoclopramide Hydrochloride.

Determination of ? max

The maximum absorbance 0.490 and minimum absorbance 0.075 was found to be at 272 nm.

Figure 3. UV Spectrum of Metoclopramide Hydrochloride

Standard Curve of Metoclopramide Hydrochloride.

Standard calibration curve of Metoclopramide Hydrochloride in 0.1 N HCl was plotted by using the observations recorded in table and as shown in figure.

Figure 4. Calibration curve of Metoclopramide Hydrochloride in 0.1N HCL

Table 6. Standard curve statistics

Infrared Spectrum Analysis

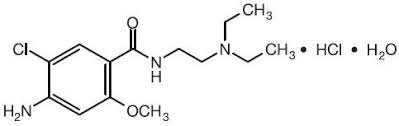

Figure 5. Chemical Structure of Metoclopramide Hydrochloride

The infrared spectrum of the pure drug Metoclopramide Hydrochloride was studied and it was found that all the various functional groups present in the structure of Metoclopramide Hydrochloride were present. Thus, through infrared spectroscopy the purity of compound was identified and presence of any impurities in the sample was overruled. The details of the peak observed and the corresponding functional groups are as in the table given below.

Table 7. Interpretation of IR spectrum of Metoclopramide Hydrochloride and formulation F9

Thermal Analysis

A sharp endothermic peak was observed at 105º C which corresponds to the melting point of Metoclopramide Hydrochloride. Thus, the purity of the drug was ascertained

Evaluation of floating beads

Compatibility study using Infrared Spectrum Analysis

Figure 6. IR Spectrum of Metoclopramide Hydrochloride

Figure. 7 IR spectrum of formulation F9 batch

Figure 8. IR of Spectrum Pure Metoclopramide Hydrochloride

Table 8. Interpretation of IR spectrum of Metoclopramide Hydrochloride and formulation F9

Figure. 9 DSC of Metoclopramide Hydrochloride

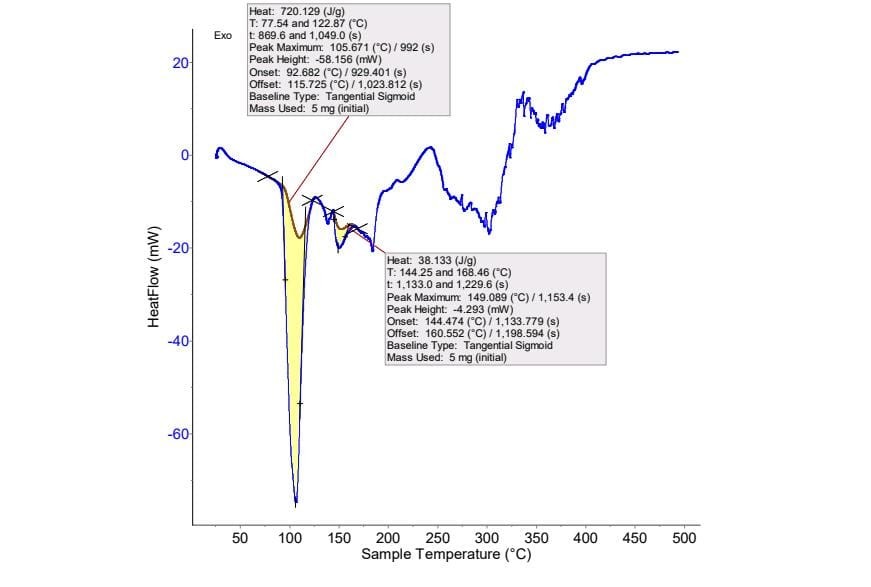

Figure.10 DSC of Formulated F9 batch

A sharp endothermic peak was observed at 105º C of Metoclopramide hydrochloride. Supporting evidence for compatibility between drug and excipients was obtained from DSC studies. In DSC thermograms of pure Metoclopramide hydrochloride (Fig.), and formulations (Fig.), no any shift in the endothermic peaks of drug was found, which suggested that there was no any interaction between drug and formulation mixture. [69]

Characterization of formulated floating Beads of Metoclopramide Hydrochloride

Particle size:

Table 9: Particle Size Analysis

 All formulations were round in particle shape with smooth surface. The mean particle size of beads of metoclopramide hydrochloride ranged from 91.12 to 113.00 µm (Table 9). The mean diameter of prepared beads was increased with an increase in sodium alginate concentration (F1-F9) due to increased viscosity of solution which influence the interaction between disperse phase and dispersion medium that affect the size distribution of particle. the sodium alginate concentration to 1% W/V resulted in clumping of the beads after drying whereas high concentration alginate (2% to 3%W/V) resulted free flowing beads. This could be attributed to an increase in relative viscosity at higher concentration of polymer and formation of larger particle. [38,69]

Percentage Yield

Table 10. Percentage yield

The studies were conducted, and the maximum percentage yield was found to be 98.20% with F9 batch and minimum of 86.76% with batch F3.  [68]

Drug Content

The data for drug content of floating beads of Metoclopramide hydrochloride is as shown below.

Table 11: Drug Content

Determination of drug content was carried out to quantify the amount Metoclopramide Hydrochloride in prepared beads, it was found to be in range 69.28% to 95.05%. The all nine batches’ results are shown in Table 11, indicating drug content improved with an increase in sodium alginate and poloxamer 188 concentrations. Enhanced drug content with an increase in sodium alginate concentration could be due to enhanced availability of the calcium binding site in anionic liner polysaccharide chain and consequently, an additional degree of crosslinking by raising the sodium alginate fraction. [69

Table No 12: Entrapment Efficiency

All values are expressed as mean ± SD (n=3)

The determined encapsulation efficiency of prepared metoclopramide HCl beads is elaborated in Table.15. The effect of polymer content on encapsulation efficiency was studied. The encapsulation efficiency in 0.1 N HCl ranged from 78.42 to 96.12%. On examination of the results, an increase in percent entrapment efficiency from 78.42 to 96.12 as the polymer concentration increased was observed. It is evident that with the increase in polymer concentration, entrapment efficiency also increased. Additionally, the increased viscosity, which is directly related to polymer concentration, hindered drug mobility, which had an impact on entrapment efficiency. [67, 68]

In Vitro Buoyancy Study

Table 13. In vitro buoyancy study

All values are expressed as mean ± SD (n=3)

The table no 13 shows the in vitro buoyancy data of Metoclopramide Hydrochloride beads in simulated gastric fluid pH 1.2. all formulation had a lower density than simulated gastric fluid. The in vitro floating study revealed that all formulation had excellent floating ability. due to the formation of air bubbles during preparation, the beads containing gas producing agent floated for longer than 12 hours. [12]

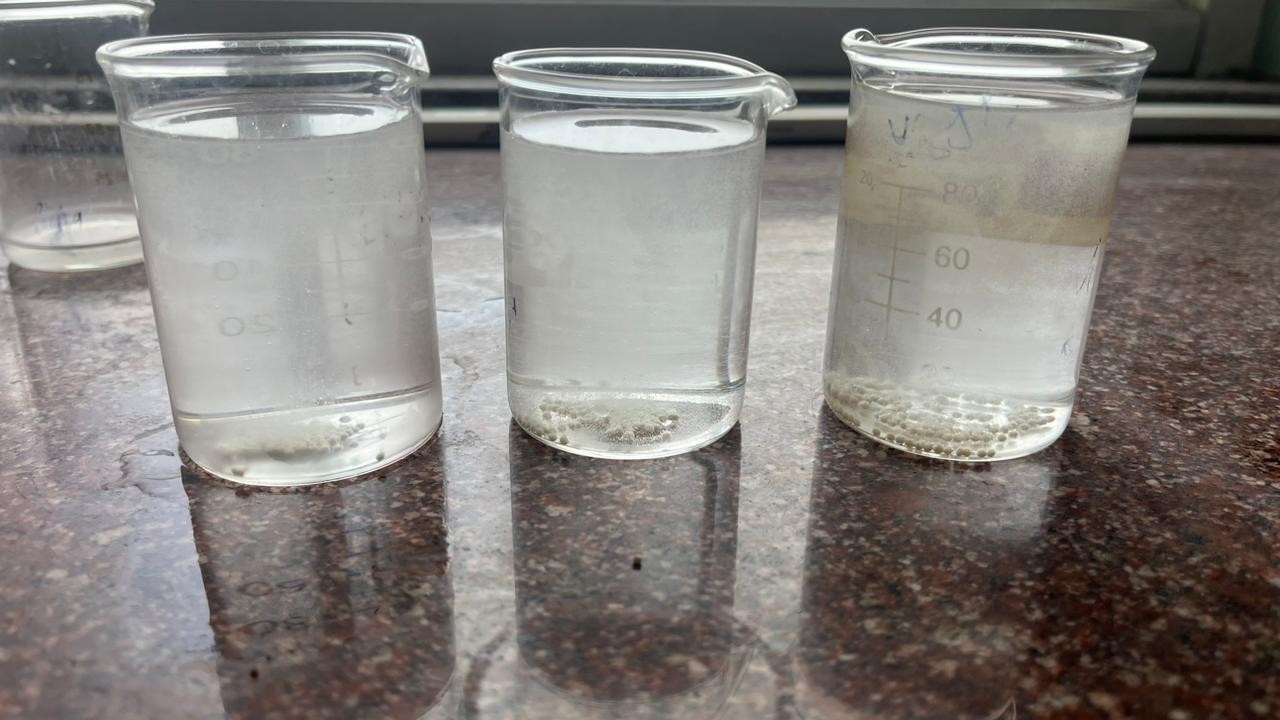

    Figure 13. Floating beads Initial Time (F1, F2, F3)

Figure 14. Floating beads after 12hr (F7, F8, F9)

Scanning electron microscopy (SEM)

The scanning electron microscopy (SEM) photographic images of optimized formulation F9. Drug loaded Metoclopramide Hydrochloride beads are represented in figure A demonstrated that round in shape.  Surface morphology of dried beads figure B and C demonstrated rough surface, visible wrinkles, and rough appearance caused by embedded metoclopramide HCl. The magnification capacity of microscopic fields allows for a clear and concise examination of various images. The image 1B at 200x magnification indicating and figure. C shows the tidy material at 500x magnification with inner penetration of sodium alginate and metoclopramide.

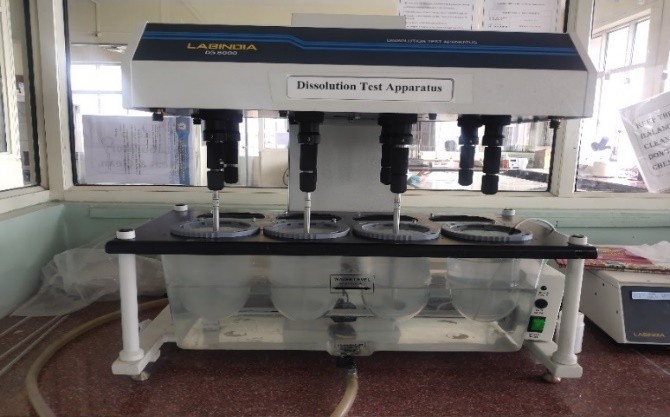

Figure 16. Dissolution test apparatus

Table 14: In vitro dissolution profile of formulation F1, F2, F3

   All values are expressed as mean ± SD (n=3)

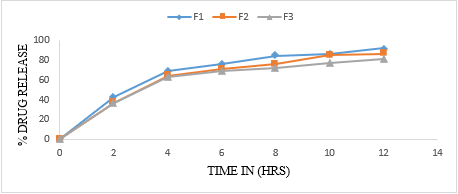

Figure 17. In vitro dissolution profile of F1-F3

Table 15: In vitro dissolution profile of formulation F4, F5, F6

values are expressed as mean ± SD (n=3)

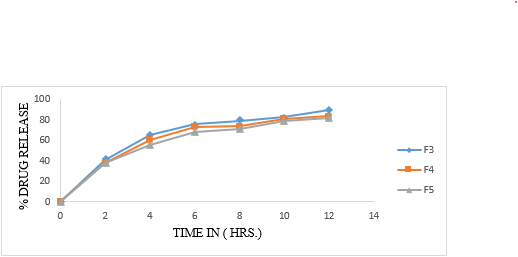

Figure 18. In Vitro-dissolution profile of F4-F6

Table 16: In vitro dissolution profile of formulation F7, F8, F9

                   All values are expressed as mean ± SD (n=3)

Figure 19. In Vitro-dissolution profile of F7-F9

 Data Analyses of Formulations:

 Traditional designing of the pharmaceutical formulations is based on time consuming approach of changing one variable at a time which does not take into consideration the joint effect of independent variables. Thus, factorial design can serve as an essential tool to understand the complexity of the pharmaceutical formulations. The results can be expressed either as simple linear or second order polynomial equation to statistically evaluate the responses obtained after experiments. A 3² full factorial design was selected, and the 2 factors were evaluated at 3 levels. The amount of Sodium alginate (X1) and Poloxamer 188 (X2) were selected as independent variables and the dependent variables were rel12hr. The data obtained was treated using Stat-Ease Design Expert 360 software and analyzed statistically using analysis of variance (ANOVA)

Table 17. Design Summary

Table 18. Response Summary

Table 19. The responses of all formulations

Drug Rel12hrs = +85.25+0.3400X1-4.04X2-0.5675X1X2+2.42X12+0.2800X22                                           [R2=0.8446]…………………….(1)

[ Adjusted R2 = 0.5856, Predicted R2 = - 0.5899, F= 3.26, P = 0.1797]

From the response surface model plot of drug release it is observed that change in concentration of sodium alginate affects the drug release. The information, the equation conveyed was the basis to study the effects of variables. The regression coefficient values are the estimates of the model fitting. The R2 was high indicating the adequate fitting of the quadratic model.

All the polynomial equations were found to be statistically significant (P< 0>

7.8. ANOVA Study:

Evaluation and interpretation of research findings are utmost important, and P-value serves a valuable purpose in these findings. ANOVA and Multiple regression analysis were done using Stat-Ease Design Expert 360 software. Table represents ANOVA for the dependent variables rel12hrs.  The coefficient of X1 and X2 were found to be significant at P values is greater than 0.1000 indicate the model term is not significant effect of the variables on the selected responses. Increasing the amount of poloxamer 188 resulted in the decrease in the release of Metoclopramide hydrochloride. Overall, both the variables caused significant change in the responses.

Table 20: Analysis of variance for Rel_12hr.

Figure 20: Response 3-D surface plot for DR
