INTRODUCTION

In recent years, PMMA modified polymers are employed in various medical applications.  The ester group of PMMA polymer converted to amide linkage in  derivatization employed as a key structural motif in various biological activities like antibacterial and anticancer activities. PMMA modified with hydrazine monohydrate and guanidine hydrochloride1 results in selective structural and biological characteristics. Modified PMMA polymers are expected to possess more biological effectiveness compared to conventional biomedical polymers. Biologically important modified PMMA derivative with  amide and  carbonyl group in chemical structure extensively used in medicine2  The presence of hydrazide moiety in the polymerized compounds is  considered  in the medical field especially for anticancer activity. Antibacterial polymers served as a potential substitute for antibiotics.  To bridge the gap between scientific research and actual or potential uses, the mechanism, benefits, and potential clinical applications of certain antibacterial polymers are synthesized and analysed in this work. Future designers and developers of antibacterial medical devices are likely to find the information presented in this article to be a helpful tool.4-6  Lung cancer cell line were used to investigate anticancer activity for the modified PMMA compounds. Based on the survey, a comparative study of  PMMA with  modified PMMA-H and PMMA-G is explored.

2. Materials and methods

Poly (methyl methacrylate), Hydrazine monohydrate, and Guanidine hydrochloride were purchased  from Sigma Aldrich. Base like Triethylamine is also purchased from Sigma Aldrich. Tetrahydrofuran (THF)  and ethanol were purchased chemicals and solvents from Rankem and analytical reagents. DMSO-d6 and CDCL3 were used in the NMR spectral analysis purchased from  Sigma Aldrich and Merck. All the substances were utilized without purification for synthesis and purification.

2.1 Synthesis of hydrazine modified PMMA

For the synthesis, 1g (10 mmol) of PMMA was taken in a 100 ml RB flask with an stirrer  and 5 ml of THF was used to dissolve the starting material. After completely dissolving the polymer, 3ml (60mmol) hydrazine monohydrate was added slowly to the reaction flask at the RT. After the reaction mixture was continuously stirred for 3 to 4 h at room temperature, and  reflux condition was continued  in an oil bath for 48h at 100 °C . The obtained solid was filtered, washed several times with ethanol, dried under vacuum at 50 °C for 2h, and then kept in a hot air oven yielding an amorphous powder that was denoted as PMMA-H.

2.2Synthesis of guanidine-modified PMMA.

PMMA was modified using guanidine in a 1:3 ratio, PMMA (3g), was dissolved in 5 ml THF. Guanidine hydrochloride (1g) was separately dissolved in 3 ml of DMF in a test tube and then transferred to the reaction flask. A magnetic stirrer was used to obtain a uniform solution. Triethylamine was added (1 ml) drop wise to the resulting solution under stirring. The

solution was refluxed in an oil bath at 120 °C for 72h.  The product formation in the reaction mixture was product using FTIR. The the solid sediment in the RB flask was washed with a small amount of water (three times) to remove unreacted quanidine. The white precipitate was dried under air and then under vacuum to obtain an amorphous powder.

2.3 Characterization.

FT-IR spectra were obtained on a Perkin Elmer spectrum Two UATR FT-IR spectrometer with KBr pellets containing modified linear polymer compound. The Spectra region is displayed with a resolution of 2 cm-1, a scanning rate of 2 mm/s, and 20 scans in the frequency range of 4000–400 cm-1.Especially the hydrazide group of modified polymer has identified and recorded the IR spectrum. 1H and 13C NMR spectra were recorded on a BRUKER-DMX advance 400 MHz Spectrometer using CDCL3 and Dmso- d6 as the solvent. The chemical shift values of the hydrazide or amide proton and carbon in the modified linear polymer molecule in the NMR spectrum serve as confirmation. The particle size distribution and Zeta potential of PMMA derivatives was observed by using Dynamic Light Scattering (Malvern Instruments Ltd, Malvern, UK). The evaluation of the thermal stability of PMMA and modified linear polymers used Thermo gravimetric analysis (TGA) was conducted with, TA Instruments, SETARAM, THEMYS ONE+, KEP technologies, Switzerland, thermo gravimetric analyzer. Experiments were carried out on 1–6 mg samples heated in flowing under N2 atmosphere at a heating rate of 5 °C/min. The temperature was employed as the measure for the amount of weight loss as a result of the volatile component's formation. The thermal analysis of PMMA and their modified derivatives were also carried out by using DSC 25, TA Instruments, and Waters Austria. The dynamic DSC run was recorded at a heating rate of (Ramp) 5?C/min under N2 atmosphere. For each analysis about 2-3 mg of sample is used, and scans were recorded in the temperature range RT to 350?C. Gel permeation chromatography (GPC; Agilent technologies, model Agilent 1260, US) was used to determine the samples' average molecular weights and molecular weight distribution. Tetrahydrofuran was used as the elution solvent, and its flow rate was held constant at 0.5 mL/min. using RI detectors and wavelength absorbance 285 nm. The modified PMMA linear polymer compounds' microstructure image was captured using FE-SEM, an advanced technique (XFlash 410, Bruker Nano GmbH Berlin, Germany, Esprit 1.9).

2.4 Cell viability by MTT assay

The Lung cancer cell lines of A549 seeded in 96-well microplates (1 x 106 cells/well) and incubated at 37°C for 72 h in 5% CO2 incubator and allowed to grow 90% confluence. Then the medium was replaced and the cells were treated with PMMA sample and modified basis compounds PMMA-G and PMMA-Hat different concentration of such as 10, 20, 30, 40 and 50 µg/mL and incubated for 24 h. The cells were then washed with phosphate-buffer saline (PBS, pH- 7.4) and 20 ?L of (MTT) solution (5 mg/mL) was added to each well. The plates were then stand at 37ºC in the dark for additional 4 hr. The formazan crystals were dissolved in 100 ?L DMSO and the absorbance was read spectrometrically at 570 nm. The percentage of cell viability was expressed as formula.

The concentration that inhibited 50% of cell growth was referred as IC50 value, which was used as a parameter for cytotoxicity study.The morphological changes of untreated (control) and treated cells were observed under the FLoid Cell Imaging Thermo Fisher –Invitrogen EVOS XL Model after 24 h and photographed.

2.5 Apoptosis assay of Modified PMMA compounds

Cell apoptosis was examined using Venugopal et al.'s (2017) protocol36. Acridine orange/propidium iodide (AO/PI) staining served as a useful method for identifying cell growth. Using the minimum inhibitory strength of modified PMMA identified by the MTT assay, A549 cancer cells were seeded in 96-well plates and incubated for 24h. Following treatment, 5 ?L of a fluorescent dye stain (acridine orange, 100 ?g/mL) and 5 ?L of propidium iodide (PI, 100 ?g/mL) were added to the treated cells and washed with phosphate buffer saline. When AO dye binds to both viable and nonviable cells, it emits either red or green fluorescence; in contrast, PI emits only red fluorescence when it connects to nonviable cells. The morphological changes37,38 in the apoptotic nuclei (intensely stained, fragmented nuclei and condensed chromatin) cells were observed Floid Cell Imaging fluorescent microscope.

2.3.1 FTIR Spectrum

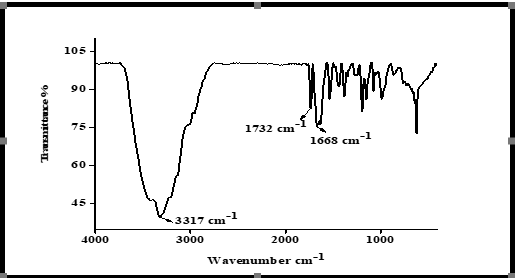

PMMA (Figure 1a) modified with two basic compounds were characterized by FT-IR7. Asshown clearly in Figure 1b and 1c, a strong absorption peak at 1668 cm?1 and 1645 cm-1 corresponding to stretching vibration of C=O bond is clearly observed for modified polymers, suggesting the formation hydrazide linkage or quinidine amide linkage. In the control spectrum Fig 1a, the adsorption peak for C=O in the methyl ester bond is located at about 1732 cm?1.The broad peaks centered at 3317 cm-1 (Fig 1b) and 3367 cm-1 (Fig 1c) suggest the multiple stretching vibrations of CO-NH and CO- NH-NHR due to H-bonding.8-10 The absence of such a broad peak in the control polymer (Fig 1a) confirms the H-

bonding in the modified polymers.

2.3.2 NMR Spectrum

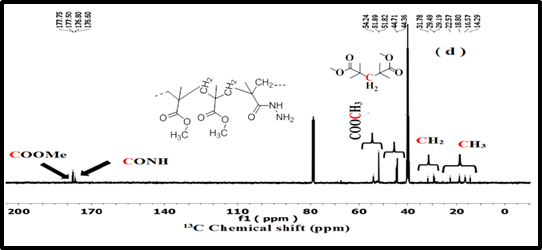

¹H and ¹³C NMR spectral methods are used  to confirm the structure of the modified linear polymers. The corresponding  chemical shift values for  hydrazide (CONH-NH2) and (CONH-*NH2) quinidine amide linkages observed in proton NMR. The 1H NMR of PMMA-H hydrazide11,12 linkage (fig 2c) showed at ? 8.07ppm  for the N-H or amide proton, Peak value at ? 3.58ppm assigned for OCH3,CH2 proton assigned at ? 1.77ppm to 1.97ppm. Methylacrylate or CH3  protons value at 0.77ppm  to 1.43 ppm. The fig (2d) represented 13C NMR spectra chemical shift value of ester carbon (COOCH3) assigned 177.50ppm and 177.75ppm.Therefore amide carbon (CONH) 176.60 ppm and 176.80 ppm. Presence of peaks at 51.82ppm, 51.89ppm  and 54.24ppm (COOCH3). Peaks  assigned at (  ) carbon 44.36ppm and 44.71ppm. 13C-NMR of PMMA-H hydrazide linkage: 29.19, 29.49, 31.78 ppm (CH2), 14.29, 16.57, 18.80, 22.57ppm (CH3).Showed (Fig 2e) 1H NMR spectrum of PMMA-G quanidine amide linkage13,14? 7.93 to 8.23ppm (CONH-NH-NH2), OCH3 protons cluster assigned  value 3.6 ppm,  assigned CH2protons 1.77 to 2.27 ppm and CH3 protons ? 0.84 to 1.43 ppm. 13 C NMR spectrum of PMMA-G(fig 2f) quanidine amide linkage (CDCL3)  177.82 ppm (COOCH3), 152.58 ppm (CONH),  assigned 51.82ppm (COOCH3), Carbon peak at ? ( )44.56-44.89ppm, 29.68-31.83 ppm (CH2),  9.17 to 20.59ppm (CH3).  The structural characteristics of  modified PMMA-H and PMMA-G  linear  polymers were confirmed  by  1H and 13C NMR

spectral studies.

2.3.3 Particle size & Zeta potential

Fig 3:DLS analysis of Particle size distribution for (a) PMMA, (b) PMMA-H and (c) PMMA-G

The Z-average size distribution of PMMA and PMMA modified derivatives using DLS15,16 analysis was (Fig 3a,b,c) 710 ± 10 nm (PDI 0.5), 550 ± 10 nm (PDI 1.0), and 290 ± 10 nm (PDI 0.4) respectively with a negative zeta potential of -33.1, -25.5 and -7.2 mV, respectively.

2.3.4 Gel permeation chromatography (GPC)

chromatogram of PMMA-G

GPC analysis of PMMA Weight average molecular weight17-20 giving 9656 (Mw) ? (g/mol) and Number average molecular weight of 9489 (Mn) ? (g/mol) with polydispersity (PDI) of 1.018. Synthesized modified linear polymer average molecular weight of hydrazide21-23 (PMMA-H) and amide guanidine (PMMA-G) 10089 (Mw) ? (g/mol), 9691 (Mn) ? (g/mol) and 61528 (Mw) ? (g/mol) 58998 (Mn) ? (g/mol) with polydispersity (PDI) of 1.041 and 1.043 respectively. The average molecular weight of the PMMA derivative was observed to be higher than that of the PMMA from the GPC results and shown in the Table-1.

Table 1.GPC results for the PMMA and PMMA derivatives polymer.(Mw) ?, average-weight molecular weight;(Mn) ?, average-number molecular weight; PDI, polydispersity index.

2.3.5 Differential scanning calorimetry (DSC)

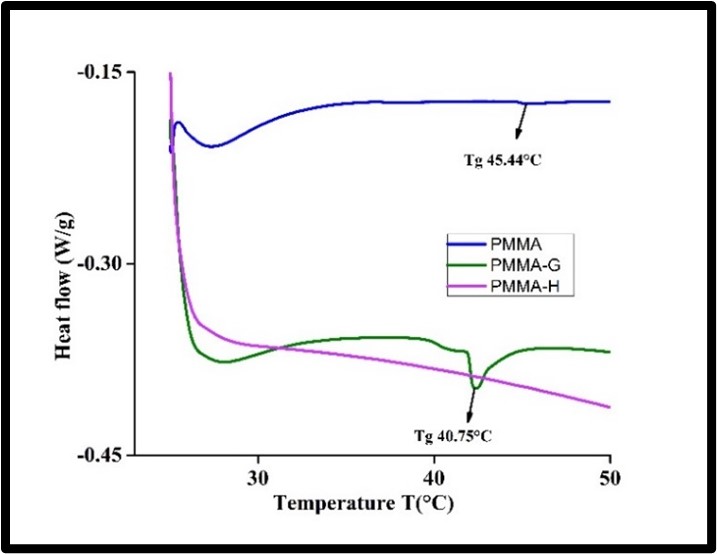

Thermal analysis techniques such as DSC are generally employed to analyse the thermal characteristics such as melting temperature(Tm) and  glass transition temperature (Tg).   The Tg depends on the molecular mobility of materials in crystalline as well as amorphous structures. The DSC thermo gram of (Fig 4&5) PMMA shows Tg at 45.44°C and an endothermic24,25curve ~ 84.39 °C. The Tg corresponding to PMMA-modified derivatives like quanidine amide decreases to Tg at 40.75°C but did not reveal DSC shows hydrazine Tg and the broad endothermic curve obtained from the graph at 105.64°C. Typical DSC curves of quanidine hydrazide heat transition of endothermic temperature at 123.03°C and 220.58°C respectively.In DSCthermogram, the glass transition26 of modified polymers values is comparatively  lower than the Tg of the pure PMMA. All the polymers degradation starts from ~300°C.

The increased melting temperature of modified polymers is higher than PMMA. Data proved that modified polymers thermally stable than PMMA. The reason for phase, changes confirm by the endothermic temperature values of the aliphatic-modified hydrazide polymers compound.

2.3.6 Thermogravimetric Analysis (TGA)

The thermal stability of PMMA and PMMA modified polymers was investigated by TGA and  shown in Fig.7. From the thermograph a single-step degradation27 was observed in PMMA, which began at about 288 ?C and finished at about 425 ?C. It can be seen from the graphundergoes one major stage of degradation in this temperature and the value of the weight loss at this stage is 94.63%.There was a negligible weight loss (2–4%) up to100 ?C, which might be due to the moisture present on the samples. The ash content (at 800 ?C) of pure PMMA was 1.57% and total weight loss 98.43%. Hydrazine hydrazide PMMA-H compound, TGA curve showed two steps of thermal degradation occurred.

First degradation temperature from 234.8?C to 448.9?C with the weight loss28 of 87.54% and second degradation temperature from 471.4?C to 573.1?C with the weight loss of 2.24%.Ash content 4.77% and total loss of mass value 95.23%.Modified PMMA compound like PMMA-G,TGA curve indicated three stage  of degradation was observed. First stage of decomposition temperature29,30 starts from 174.0?C and ends at 294.2?C with sum of weight loss 21.18%.Second degradation steps starts from 335.4?C and ends at 464.9?C and % of weight loss in this stage at 18%.Third degradation temperature starts from 497.7?C to 585.1?C with mass loss value 1.86%.After decomposition residue content 51.62 %.Total weight loss 48.38%.

2.3.7 FE-SEM (Field emission scanning electron microscopy)

The surface morphological of PMMA sample and after chemical modification of the PMMA samples in the present study were analyzed using FESEM analysis.

2.4 Antimicrobial studies

2.4.1 Antibacterial studies

Materials

Standard cultures for antimicrobial assays were stepped up from Microbial Type Culture Collection (MTCC), IMTECH, Chandigarh, India.

The agar well diffusion method31 was performed to determine the anti-microbial activity of the synthesized polymerized materials. These organisms namely Gram +ve (Bacillus cereus (MTCC 4079), Staphylococcus aureus (MTCC 737), Gram -ve (Escherichia coli (MTCC 1687), Pseudomonas aeruginosa (MTCC 1688). Fresh overnight (24hrs) bacterial culture (1x105 cells/mL) was spread evenly on the surface of nutrient agar with the help of cotton swabs. Then, with a sterile cork borer, holes of 6 mm were punctured. Varying volumes (25-75µl) of compounds were loaded aseptically into the holes, and the plate was incubated for 24 hrs. Ampicillin was used as the positive control 32-35.

2.4.2 Cell viability by MTT assay

The Lung cancer cell lines of A549 seeded in 96-well micro plates (1 x 106 cells/well) and incubated at 37°C for 24 h in 5% CO2 incubator and allowed to grow 95% confluence. Then the medium was replaced and the cells were treated with and PMMA sample and modified basis compounds PMMA-G and PMMA-Hat different concentration of such as 10, 20, 30, 40 and 50 µg/mL and incubated for 24 h. The cells were then washed with phosphate-buffer saline (PBS, pH- 7.4) and 20 ?L of (MTT) solution (5 mg/mL) was added to each well. The plates were then stand at 37ºC in the dark for additional 4 hr. The formazan crystals were dissolved in 100 ?L DMSO and the absorbance was read spectrometrically at 570 nm. The percentage of cell viability was expressed as formula.

The concentration that inhibited 50% of cell growth was referred as IC50 value, which was used as a parameter for cytotoxicity study.The morphological changes of untreated (control) and treated cells were observed under the FLoid Cell Imaging Thermo Fisher –Invitrogen EVOS XL Model after 24 h and photographed.

2.4.3 Apoptosis assay of Modified PMMA compounds

Cell apoptosis was examined using Venugopal et al.'s (2017) protocol36. Acridine orange/propidium iodide (AO/PI) staining served as a useful method for identifying cell growth. Using the minimum inhibitory strength of modified PMMA identified by the MTT assay, A549 cancer cells were seeded in 96-well plates and incubated for 24h. Following treatment, 5 ?L of a fluorescent dye stain (acridine orange, 100 ?g/mL) and 5 ?L of propidium iodide (PI, 100 ?g/mL) were added to the treated cells and washed with phosphate buffer saline. When AO dye binds to both viable and nonviable cells, it emits either red or green fluorescence; in contrast, PI emits only red fluorescence when it connects to nonviable cells. The morphological changes37,38 in the apoptotic nuclei (intensely stained, fragmented nuclei and condensed chromatin) cells were observed Floid Cell Imaging fluorescent microscope.

RESULT AND DISCUSSION

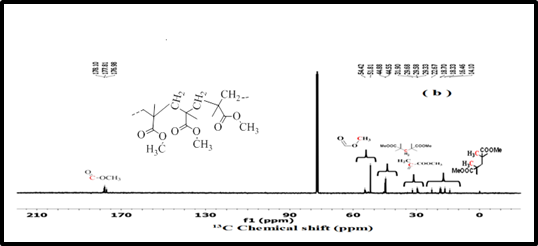

For the purpose of characterization of modified PMMA derivatives,FT-IR,1H and 13C NMR spectra were recorded.The commercial sample (Sigma –Aldrich) of  PMMA was used for recording spectra. The proton NMR spectra (Fig 2a) of PMMA show two ester, two methylene, and two methyl signals. The 13C –NMR spectrum(Fig 2b)displays two ester signals & clusters of 13C signals corresponding –CH2- & -CH3groups. In the FT-IR spectrum (Fig 1a) of PMMA, a strong stretching at 1732 cm-1 confirms the presence of the ester group. Stretching vibrations corresponding to CH3 and CH2 moieties are also a district in the FT-IR spectrum. These spectral characteristics are useful to confirm the modification of PMMA upon reaction with hydrazine and quanidine. When PMMA is modified with NH2-NH2, in addition to the ester signals(at 3.58&3.80 ppm), a new signal appears at 8.07 ppm, corresponding to the newly formed amide bond(hydrazide bond). The formation of the hydrazide derivative of PMMA is confirmed by the additional 13C resonances in the range of 176.60-177.75 ppm. The presence of a free amino group was also confirmed through the Ninhydrin Test(…development of purple color). Encouraged by these results, we attempted to obtain PMMA derivatives modified with hydrazine and quanidine amide, As expected, the quanidine derivative of PMMA showed three resonances at ~ 7.93,8.12,8.23 ppm corresponding to newly formed CO-NH bond. Partial modification of PMMA is evident from the appearance of a singlet at 3.60 ppm stemming from the residual ester group (COOMe). The 13C NMR spectrum shows the presence of ester carbonyl 177.82 ppm and amide carbonyl 152.58 ppm moieties. Partial modification of PMMA by quanidine is supported by the FT-IR data (Fig 1b), Which shows both ester and amide stretching vibrations at 1732 cm-1and 1668 cm-1, respectively. In DLS analysis, the modified linear polymers like hydrazide derivative of PMMA guanidine (PMMA-G) and hydrazine (PMMA-H)) showed (Figure 3) less particle size than the (PMMA) due to their aliphatic hydrazide moiety formation. The higher negative zeta potential denoted the strong repulsion force between the particles causing an amplification or enhancement of stability. The DLS measurement of PMMA was negative in charge with a zeta potential value higher than the PMMA modification compounds. For the data evidence, a higher zeta potential charge would lead to a long time storage stability of the PMMA compared to PMMA derivatives (Raja et al. 2015; Vara- davenkatesan et al. 2016).The glass transition temperature of unmodified pure PMMA has a somewhat higher value than that of modified linear compounds, as seen by the DSC curve in the graphs (Figures 5 and 6). However, the DSC graph was ensured by exothermic temperature, which is the melting point temperature at which PMMA-G and PMMA-H had higher values due to modified compounds' phase transitions at varying temperatures. According to data, modified PMMA (PMMA-G, PMMA-H) has higher melting temperature corresponding to thermal stability than PMMA.It is evident that the PMMA and derivative compounds exhibited different thermal degradation behaviors. The modified compound's TGA degradation temperature starts earlier and higher degradation temperature corresponding to it is noticed in the lower and high values of ash content (1.57%) for PMMA and (4.77% and 51.62%) for modified polymer (PMMA-H)is slightly higher and more values as (PMMA-G)  compounds. The possible explanation for the higher thermal stability of the modified polymer in comparison with the PMMA is that, during thermal degradation, the polymer degrades rapidly and leads to the formation of hydrazide or amide moiety, which may be more stable in comparison with the PMMA.Average molecular weight of the PMMA derivative was observed to be higher than that of the PMMA from the GPC results. PMMA modified of two compounds average molecular weight confirm by the GPC data (Figure 4). The surface and size of the PMMA  was observed from the images to compare after the chemical polymerization of modified compounds was changed. This morphological  changes supported the biological activities of the modified PMMA-G and PMMA-H in the present research work. FE-SEM39-41 images showed the morphology of PMMA-G and PMMA-H were smallere in  size and further the molecule were aggregated to each other in campare to  PMMA.

3.1 Anti-bacterial activity

Figure 7. PMMA, PMMA-G and PMMA-H treated with gram positive and gram negative bacteri

Both the direct and indirect role occurs in a parallel system, making these compounds an excellent tool to combat the above microbes. This study worked to assess the efficiency of the synthesized polymerized materials towards both gram + ev and gram -ev bacteria with the highest concentration of approximately 106 CFU/mL. Among three compounds,PMMA was found to have the least effective zone of inhibition because its incorporating free amino and hydrazide or amide groups into PMMA made it possible to synthesize modified linear polymers with improved hydrophilicity, better solubility in aqueous media, and solubility in organic solvents. This modified linear polymer also allowed for the protonation of the free amino and hydrazide groups, which improved their antibacterial activity. Whereas PMMA-G linear polymer and PMMA-H provide a maximum zone of inhibition due to their hydrazide and amide moiety in the modified linear polymer of basic compounds.

3.2 Anticancer activity of PMMA-modified compounds against A549 cell line

The lung cancer cell line (A549) was used to test the PMMA standard and modified compounds' anticancer activity. The results are shown in Figure 9.The MTT assay was carried out by exposing A549 cells to different concentrations (10–50?g/mL) of PMMA std, PMMA-G, and PMMA-H for 24 hours. The treated and untreated cells were analyzed for morphological changes and cell viability in the PMMA standard and PMMA-modified samples.According to the results, compared to untreated cells, the growth of cancer cells was marginally decreased by an increase in PMMA concentration.

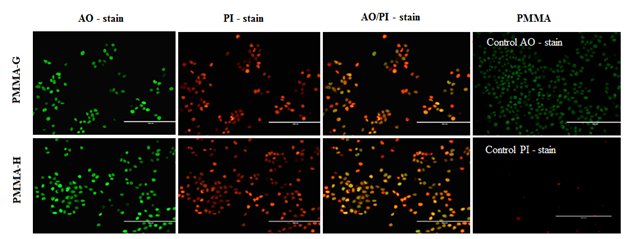

    Figure10.The fluorescence microscopy images show the dual AO/PI staining assay-based apoptosis in A549 lung cancer cells.
