Development of a Bio-Enhanced Herbal Antidiabetic Tablet Using Gymnema sylvestre

Herbal medicine have attracted lot of interest in several years. Because of their natural origin, less side effect and ability to effectively treat chronic illness. One of the most thoroughly researched and traditionally used herbs in ayurvedic is Gymnema sylvestre which is well known for its diabetes mellitus[1,16]. It commonly known as “Gudmar” or “suger destroyer” which contain gymnemic acid, glycoside, saponin, terpenoids which show the various activity such as hypoglycemic, antioxidant, anti-inflammatory[13,14,15].

The gymnemic acid useful in diabetes by various mechanism such as increase insulin production by suppress taste of sweetness and encouraging the regeneration of pancreatic beta cells, inhibits glucose absorption from intestinal, decrease peripheral insulin resistance, increase glucose absorption into cell and prevent insulin activation by acting on liver cell. Gymnema sylvestre extract are standardized for their gymnemic acid concentration which ranges from 25-75% depend upon extract gymnemic acid content daily therapeutic dose 300-700mg.

Diabetes is metabolic disorder which caused by insufficient and inadequate insulin production[5]. There three type of diabetes mellitus such as type1 diabetes caused due to body failure produce insulin and require person to insulin inject, type 2 diabetes is insulin resistance in that condition cells fails to use insulin properly and gestational diabetes is when pregnant women never diabetes before increase blood glucose level during the pregnancy. The diabetes mellitus affect millions people worldwide[6,7,12]. The treatment of diabetes is long term making herbal medicine are safer and alternative option. Gymnema Sylvestre play vital role in suppressing taste of sweetness, enhancing insulin production and promoting pancreatic beta cells[4,9,10,11].

Gymnema sylvestre has therapeutic benefits by using powdered or raw form. Therefore, the formulation of the Gymnema sylvestre into tablet is most effective and safe medication. Due to their controlled release capabilities, prolong shelf life, accurate dosing and easy to administration tablet formulation are preferred.

This research aim is to development of a Bio-Enhanced Herbal Antidiabetic Tablet Using Gymnema sylvestre by direct compression method. By adjusting the excipients and evaluating pre and post compression parameter the formulation was optimized. Additionally uv spectroscopic method was develop to quantify the cumulative drug release and active constituents. This study provide a groundwork for creating herbal antidiabetic tablet which both patient friendly and clinically proven.

MATERIAL AND METHOD

Materials

Gymnema Sylvestre leaves where collected from local area dried powdered, and used as antidiabetic, antioxidant and anti-inflammatory. The excipients used in the formulation are stearic acid is used as lubricant, microcrystalline cellulose is used as binder, calcium carbonate is used as anticaking, lactose is used as filler, magnesium stearate is used as glidant and gives peasant appearance to the tablet[17,18,19,20].

Figure no 1: Gymnema sylvestre

Methods

Preparation of dry powder of Gymnema Sylvestre

Collection of fresh leaves of Gymnema Sylvestre from the local area. wash the leaves by using water(distilled). Dry leaves at room tempreture for some days. The hot air oven or autoclave is used for complete dry of leaves. Then grind the leaves in mixer to make fine powder.

Preparation of 20 mM dibasic sodium phosphate buffer

Take 1000ml distilled water in a beaker. Take 3.58 g of dibasic sodium phosphate powder in 1000ml distilled water. Stir properly to mix well and adjust pH to desired value (6.8-7.4) using HCL or NACL.

PROCEDURE

FORMULATION OF TABLET

The Gymnema sylvestre dired powder leaves is were utilized in the formulation to make a tablet dosage form. With the help of direct compression to crate the Gymnema sylvestre tablet [22,23,28,29].

Table no 1: composition of formulation ingredients for herbal antidiabetic tablets (400mg)

The composition of Batch 1, which includes fine Gymnema Sylvestre particles, could not be compressed into tablets due to excessive sticking to the dies and punches.

The composition of Batch 2, containing gymnema particles within the desired size range, was easily compressible, but The tablet formulation exhibited an absorbance peak at 202 nm, which is marginally lower than the reference peak of 210 nm for Gymnema sylvestre. which may suggest issues with the bioavailability or solubility of the active ingredient.

The composition of Batch 3, Increase the quantity and reduce particle size of Gymnema Sylvestre powder to increase the surface area and dissolution rate

EVALUATION

Preformulation studies

1.Particle size

The average weight of tablet is affected their size. The technique used for identification of particle size is sieving (no 44)

2.Angle of repose

The angle of repose was determined by the funnel method. Firstly carefully weighed the mixture was drawn in to funnel. Using the funnel, the drug excipient combination was allowed to freely flow to the top. Adjust the height of the funnel such that the tip of funnel just reaches the peak of heap or mix head[3]. With help of following formula to measured the angle of repose after measuring powder cone diameter:

Tan θ = h/r

Where, h = height in (cm)

r = radius in (cm)

3.Bulk density (BD)

The bulk density is defined as the mass of the powder material to the volume of porous powder. In 100ml measuring cylinder weigh accurately 25g of powder which is sieved through #44. Then calculate bulk density in gm/ml formula is given below.

BD =M/V0

i.e Bulk density = Mass of powder / volume of powder

4.Tapped density (TD)

It is the ratio of the powder's total mass to its tapped volume. Weigh exactly 25 g of granules sieved with a 44# sieve and transferred to a 100 ml graduated cylinder of a tap density tester that had been run for a certain number of taps until the powder bed volume reached a minimum, as predicted by formula.

TD = (M) / (Vt)

Tapped density = Weigh of powder / Tapped volume

M = mass of the powder; Vt = tapped volume of the powder.

5.Carr’s Index (Carr's Compressibility Index)

It is a simple test to evaluate the bulk density and tapped density of a powder and the rate at which it was packed down. The formula for Carr’s index is as below:

100 × (Tapped density - Bulk density)/ Tapped density

6.Hausner’s Ratio

Hausner’s Ratio is a TD to the BD

Hausner’s Ratio = Tapped Density/ BulkDensity

Physical evaluation of tablets

1.General appearance

The formulated tablets were assessed for its general appearance and observations were made for shape, colour, texture and odour

2.Weight Variation test

Twenty pills were chosen and weighed independently and collectively in a weight variation test. The aggregate weight was used to calculate the average weight. The average weight of each pill was then compared to check if it was within permissible limits.

Average weight = weight of 20 tablets/20

%weight variation = average weight - weight of each tablet/ Average weight×100

3.Thickness

A Vernier Calliper was used to measure the thickness of the tablets.

4. Hardness test

There various hardness tester available in market we used monsanto hardness tester was used to measure the hardness of the tablet. Placing the bottom plunger against the tablet resulted in a zero reading. When the spring is squeezed, a pointer in the barrel travels along with a gauge, indicating the force[30].

5. Friability test

Roche friability used for measure the tolerate abrasion during handling, packaging, and transporation. Then filled tablet in friabiltor, which are weighed and rotated at 25 rpm for 4 min. It should be in the range of 0.5 to 1.0 percent[2].

Friability as a percentage = [(B-A)/B] 100

Where,

 B is the weight of the tablets before the test,  A is the weight of the tablets after the test.

6.Disintegration test

The 900 ml of 20 mM dibasic sodium phosphate buffer was the disintegration medium and the time to disintegrate completely was noted. Six tablets were put in the pipe, raising and lowering the tube in such a way that 28 to 32 per minute repeated the full up and down motion. If there are no particles above the gage that pass through the mesh easily, then the tablets disintegrate

7.Wetting Time

Take five circular tissue paper which has 10 cm diameter. Then placed into petridish. Take 10 ml water to add in petridish. Tablet placed on surface of tissue paper. Note the time required to reach the upper surface of the tablet.

8.Dissolution profile (IP method)

Dissolution testing for the amount of gymnema was studied using the following dissolution parameters:

Dissolution parameters

Apparatus: type II USP, paddle

Speed: 50 rpm

Dissolution medium: pH 6.8 phosphate buffer

Sampling time point: 2, 5, 10, 15 and 30 min

Temperature: 37± 0.5oC.

One tablet was transferred to each vessel containing 900 ml of dissolution medium. 10 ml sample was withdrawn at each time interval and filtered through 10 micron filter. Then 5 ml of withdrawn sample was diluted up to 10 ml with dissolution medium released was calculated by estimating drug in dissolution medium using UV spectrophotometer.

RESULT AND DISCUSSION

1.Analysis of phytoconstituents

In table 4 which show the both Molisch’s and fehling’s test indicate the presence of  gymnemic acid and glycone part of the glycoside in Gymnema sylvestre. The lead acetate test contains the flavonoid compound such as kaempferol which are used in the anti-inflammatory and antioxidant activity. Saponin test indicate the positive froth test confirm the saponin in the Gymnema sylvestre. Terpenoids test shows the presence of gymnemagenin in the extract[21,24,25,26,27,31,32]

2. Preformulation parameter for herbal tablet

In table 5 which shows the precompression properties in that batch 3 show the best flow property instead of other two batch. In that batch the lowest carr’s index shows the best compressibility, lowest Hausner ratio shows the excellent flow and good angle of repose (26.7°) which is acceptable flow[33].

Table no 3: Preformulation parameters for herbal tablets

Table no 4: Physical parameter for herbal tablets

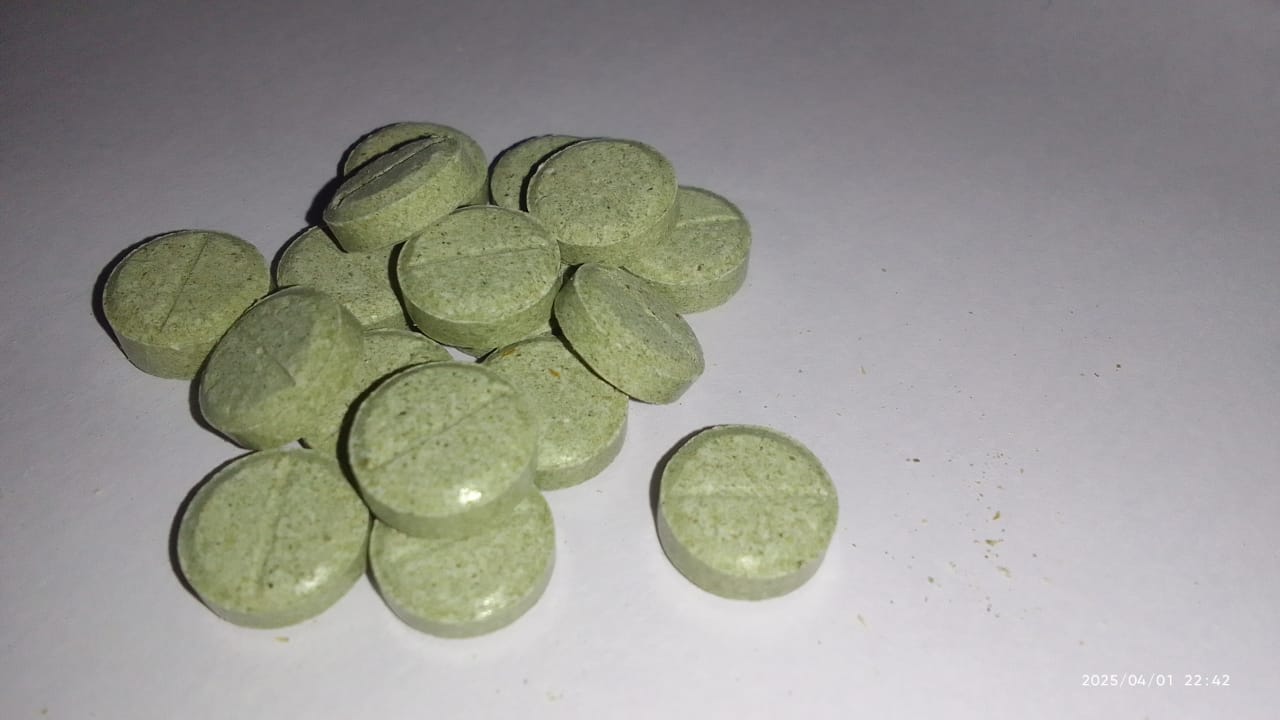

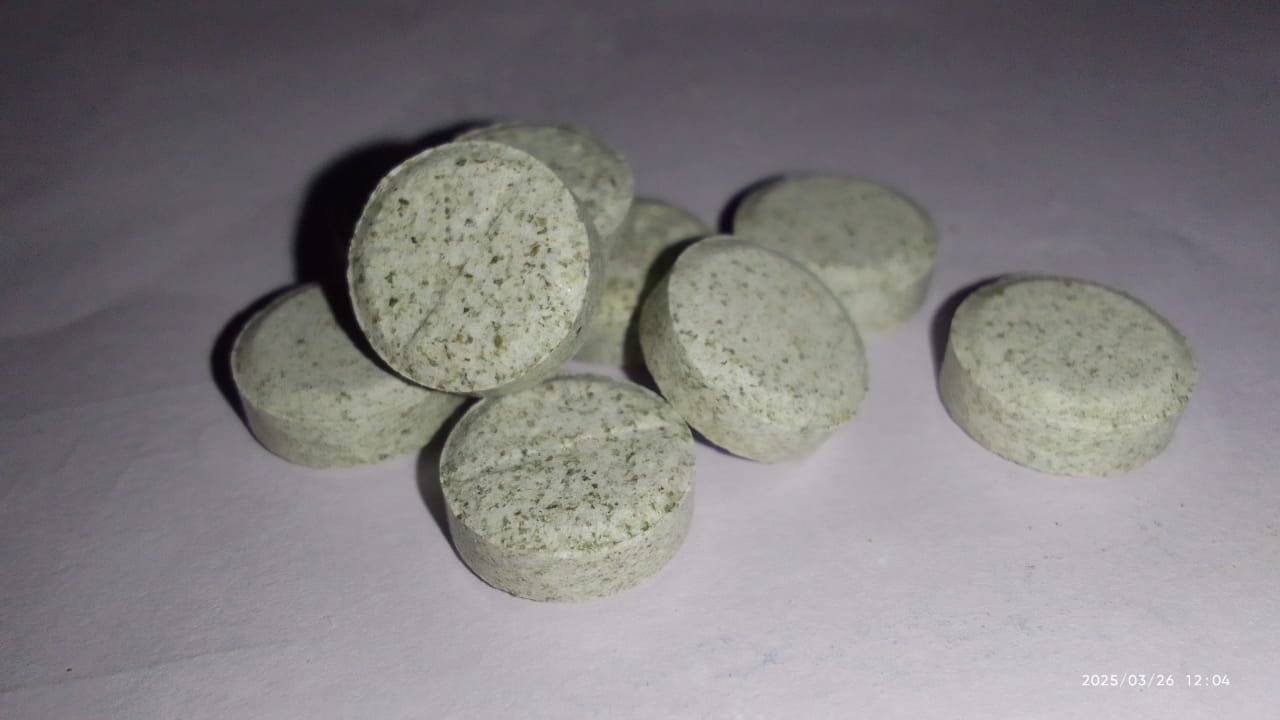

Figure no 4: Batch 3

3. Post formulation parameter

In table 7 shows the post formulation parameter which assess the tablet quality, safety, durability, and after compression performance. Batch 3 shows favorable result reason is that consistent weight, mechanically more strong, better wetting time[34,35].

Table no 5: Postformulation– Tablet Evaluation Tests

Figure no 5: wetting time of batch 3

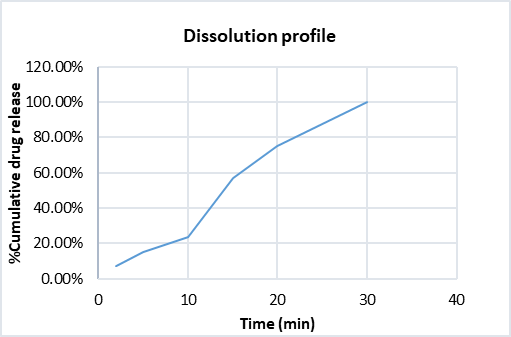

4. Dissolution profile

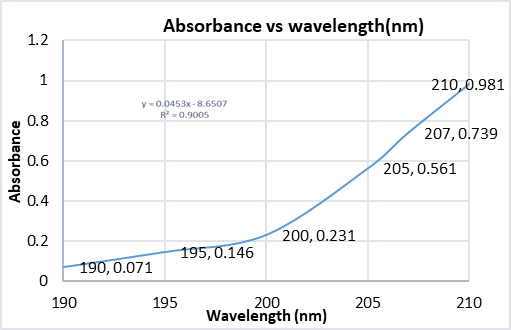

The in vitro drug release profile data which shows the by 15 min more than 50% drug is release which indicate fast initial release this helpful for fast acting. At 30 min 100% drug released which show the complete and efficient dissolution. The wavelength range from 190 nm to 210 nm which are typical uv absorbance for phytoconstituent like gymnemic acid[8,36,37]

Table no 6: % dissolution profile of gymnema tablet
