Formulation Characterization and Evaluation of Gel Incorporated Silver Nano Particle Using Oxystelmaesculentum for Anti-Bacterial Activity

Drug Delivery System

A Medication Conveyance Framework (DDS) is characterized as a detailing or a gadget that empowers the presentation of a restorative substance in the body and works on its viability and security by controlling the rate, time, and spot of arrival of medications in the body. The target of any medication conveyance framework is to convey a restorative measure of medication to the site of activity and to keep up with the ideal measure of medication level in the tissue or the body that can evoke an ideal pharmacological impact without causing any serious unfavorable reactions1. (The fundamental objective of a DDS is to ensure the accurate and consistent delivery of a therapeutic dose of medication directly to the intended site of action, while maintaining optimal drug concentrations in the body, eliciting the desired pharmacological response, and mitigating the risk of severe adverse reactions, thereby optimizing treatment outcomes and enhancing patient well-being.)

Nanotechnology

Nanotechnology is perhaps of the quickest creating science throughout the course of recent years. This is a between disciplinary science that interfaces information on science, science, physical science, designing and material science.2 Nano word comes from the Greek word "nanos" signifying "overshadow". Nano regularly is characterized as one billionth of an amount or term that addresses numerically as 1 x 10-9 or basically as 10-9. It is the study of tiny, essentially any science that includes grasping the world at the nuclear level, controlling material on the size of particles and molecules.3 Nano particles are little strong colloidal particles which are accessible in range from 10 to1000 nm (1.0 µm), in which the dynamic medication or naturally dynamic material are disintegrated, entangled, and additionally to which the dynamic guideline is adsorbed or appended. Objective of nanotechnology is same as that of medication, to analyze as precisely and ahead of schedule as could really be expected and to treat as successfully as conceivable with practically no aftereffects utilizing controlled and designated drug conveyanceapproach4.

• Drug conveyance and related drug improvement with regards to nano medicine ought to be seen as science and innovation of nanometer scale complex frameworks, comprising of no less than two parts, one of which is a chemically dynamic fixing. (Has emerged as one of the fastest-growing scientific disciplines in recent years, bridging the gap between biology, chemistry, physics, engineering, and materials science. The term "nano" originates from the Greek word "nanos," meaning "dwarf," and represents one billionth of a unit or 10^-9 numerically. Nanotechnology is essentially the study of the tiny, involving the comprehension and manipulation of matter at the atomic and molecular level.
• Nanoparticles are incredibly small, strong colloidal particles ranging from 10 to 1000 nanometers (1.0 µm) in size, which can be used to disperse, entangle, or attach active pharmaceutical ingredients or biologically active materials. The primary objective of nanotechnology is identical to that of medicine: to diagnose diseases as accurately and early as possible and treat them as effectively as possible with minimal side effects using controlled and targeted drug delivery approaches.
• In the context of nanomedicine, drug delivery and related drug development should be viewed as the science and technology of nanometer-scale complex systems, comprising at least two components, one of which is a chemically active ingredient. The goal is to create synergistic effects that enable efficient treatment of antibacterial diseases and controlled drug release at targeted sites. Specifically, the objective is to:

- Develop Oxystelma Esculentum-stabilized silver nanoparticles and integrate them into a gel formulation.

- Create a synergistic effect that enables efficient treatment of antibacterial diseases using Oxystelma Esculentum-stabilized silver nanoparticles.

Objective:

• Oxystelma Esculentum balanced out silver nanoparticles and gel integrated with silver nanoparticle.
• This detailing of Oxystelma Esculentum settled silver nanoparticles will create synergistic result to treat the antibacterial disease proficiently and discharge the medication in controlled way to focus on the particular site
• To develop an eco-friendly, green synthesis method using oxystelma esculentum extract as a reducing and stabilizing agent for   AGNP production.
• To validate the effectiveness and safety of the agnp incorporated gel as a potential antibacterial formulation

Innovation And Applicability

• To explore the potential of oxystelma esculentum as a bioresource for nano particles synthesis and its application in biomedical formulation

Gel Characterization:

Physical Properties: evaluate the gels Ph, viscosity and spread ability

Stability: assess the physical stability of the gel over time under various storage conditions

Release Profile: conduct invitro release studies to determine the release kinetics of AGNP from the gel matrix

Particle Distribution: confirm uniform dispersion of nanoparticles within the gel using microscopy techniques.

MATERIAL AND METHODS

Pharmacogenetic studies

Collection of plant material:

• The live and solid new leaves were gathered from Tirunelveli Locale, Tamil Nadu which is situated on the South East bank of India. Then, at that point, it was cleaned appropriately with water
• It is realized that the dynamic constituents of rest orative plants are impacted by many factors and may shift over the span of plant development.
• Legitimate season of assortmentis vital to get a medication of adecent quality.

Authentication of plant material:

The gathered example were isolated, recognized and verified by researcher, Xavier Exploration Establishment, St. Xavier's school, palayamkottai, Tamil Nadu-627002.

Solvent Determination: The ideal dissolvable for aspecific pharmacologically dynamic constituent ought to:

•Be exceptionally specific for the compound to be removed.

•Have a high limit with respect to extraction concerning coefficient of immersion of the compound in the medium.

•Not respond with the extricated compound or with different mixtures in the plant material.

•Have a low cost.

•Be innocuoustoman and to the climate.

•Be totally unstable. Extraction of rough medications: These are numerous systems for getting removes

• Imbuement
• Maceration
• Permeation
• Assimilation
• Decoction

Concentrate scan be characterized as arrangements of rough medications which contains all the device which are dissolvable in the dissolvable utilized in making the concentrate. The instrument utilized in extraction technique is completed in Soxhlet mechanical assembly with persistent hot extraction. Delicate concentrates and liquid concentrates are ready with water dissolvable.

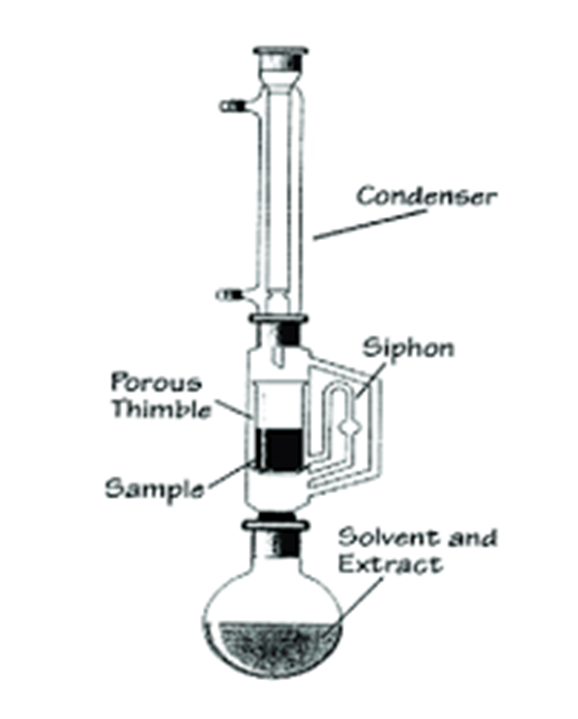

Soxhlet Apparatus

An equilibrium is established between the solute inside the cells and the solvent surrounding the fragmented plant tissues.

The speed with which this equilibrium is established depends on:

• Temperature
• pH
• Particle size
• The movement of the solvent

Preparation of plant extract⁸⁴

20g of dried powdered natural plant was separated consecutively by hot nonstop permeation technique in Soxhlet device utilizing 100 ml watery concentrate. The arrangement was cooled at room temperature and separated by Whatman channel paper No.1 to eliminate sinewy contaminations. The watery concentrates were gathered and put away in250 ml Erlenmeyer carafe at 4°C in fridge. The put away fluid concentrate was utilized as decreasing specialist and balancing out specialist in somewhere around multi week for the biosynthesis of silver nanoparticle from silver nitrate. All china and gear utilized in the review were appropriately washed with refined water and dried in stove.

Qualitative analysis of phytochemical constituents⁸⁵

The qualitative analysis was done by chemical tests to detect the presence of phytochemical constituents in the extracts of Oxystelma esculentum were carried out as described below and their results are recorded.

Herbal Extract and Excipient compatibility study

• FourierTransformationInfraredSpectroscopy⁸⁶Similarity study was concentrated by recording the range utilizing Nicolet Fourier change Infrared spectroscopy (FT-IR) joined to PC (with range 2000 examination programming) in the scope of 4000 cm-1 to 400 cm-1 by Potassium Bromide Press Pellet procedure by applying tension of 10 tons for 5 min in a water powered press. The pellet was set in light way and the spectra were dissected.

Formulation Synthesis of Silver nanoparticles

Preparation of 1mM Silvernitrate⁵⁹

17mg silver nitrate was precisely gauged and moved into 100 ml standard cups to get 1mM Silver nitrate arrangement.

MicrowaveLightTechnique84

100 ml arrangement of 1Mm silver nitrate was added to the different grouping of fluid concentrate arrangement and saved on attractive stirrer for 15 minutes to accomplish uniform blending. Container containing arrangement was moved into microwave. The microwave power was kept consistent at 840Watts and the variety change was noticed. Less time expected for decrease of silver nitrate in separate answer for acquire silver nanoparticles was streamlined. Rosy earthy colored tone affirms the arrangement of silver nanoparticles and investigated by UV Apparent spectrophotometer. Color changes during decrease of silver nanoparticles84During decrease of silver nitrate variety change was noted. At first it was yellowish orange tone and goes to rosy earthy colored variety which shows the arrangement of AgNPS.

Separation of Silver Pellets 87

The radiating power was utilized to isolate silver pellets. The divergent power was utilized at 5000 rpm for 60minutes. The supernatant was disposed of, the AgNPs was redispersed in refined water. To acquire test powders, AgNPs sols wereDried examples (OE silver nanoparticles) of around 100 mg were blended in with 100 mg of phantom grade KBr and squeezed into circles under water powered pressure. FTIR spectra were kept in the reach 4000-400 cm-1. FTIR estimations were done to recognize the bio atoms answerable for covering and adjustment of metal nanoparticles combined. Characterization visual axion88 the essential affirimation of the combined oxystelma esculentum silver nanoparticles is finished by visual premise. The varity change of oxystelma esculentum concentrated and silver nitrate arrangement concerning time was noticed.

• UV-noticeable spectroscopy 99
• UV- noticeable ghostly investigation portrays the arrangement ad finishing of OE silver nanoparticles. The decrease of silver particles was observed by estimating UV-noticeable range of response medium from the frequency 400-800nm by involving refined water scalar colloidal silver nanoparticle displays as simulation at frequency from 380-450nm. Fourier change infrared spectroscopy 86.

Formulation and Evaluation of AgNPs gel⁷²

The gel definition was ready by dissolving reasonable base powder in water and mixed with an attractive stirrer short-term at roughly 500 rpm. The upgraded silver nanoparticles were included the unadulterated base scattering. Further, triethanolamine was added as a neutralizer, and the pH was acclimated to skin pH. During balance, the combination was blended delicately with a homogenizer until homogeneous gel was framed.

Physicochemical Assessment of Formulations72, 73

Physical assessment

Actual boundaries, for example, variety, appearance and consistency were checked out wardly.

1. pH

Watery arrangement (1%) of the plan was estimated by utilizing an adjusted computerized pH meter at consistent temperature.

2. Viscosity

Brookfield Viscometer (Brookfield Designing Research facilities, USA) with shaft #C 64 was utilized to quantify the consistency of the formed effective gel at a speed of 50 rpm in room temperature. Estimation of consistency was finished in three-fold.

4.Estimation of Medication content in gel formulation77

Every plan (1 g) was taken in a 50 ml volumetric cup and made up to volume with phosphate support pH6.8and blended well to broke up the dynamic constituents in refined water. Following 2 hours the arrangement was separated through Whatman channel paper and 0.1 ml of the filtrate was pipette out and weakened to 10 ml with phosphate cushion pH 6.8. The substance of dynamic constituents was assessed Spectro photometrically by utilizing standard bend plotted at 408 nm.

Invitro Delivery/PervasionStudies75

In vitro dissemination reads up for every detailing were done utilizing Franz dispersion cell. The dispersion cell contraption was manufactured locally as unconditional round and hollow cylinder with 3.7994 cm2 region and 100 mm level having a dissemination area of 3.8 cm2. Phosphate cushion (pH 6.8) was utilized as receptor media. The layer was attached to the dispersion cell.

Preparation of Calibration Curve Oxystelma esculentum silver nanoparticle

In the standard bend, linearity was acquired between the convergences of 10-50µg/ml and the relapse esteem was viewed as R2= 0. 991. Hence the example Oxystelma esculentum fluid concentrate at the fixation between 10-50 µg/ml complies with the lager lamberts regulation. Fixation versus absorbance values were given in table:

Table18: Calibration curve of Oxystelma esculentum silver nanoparticle

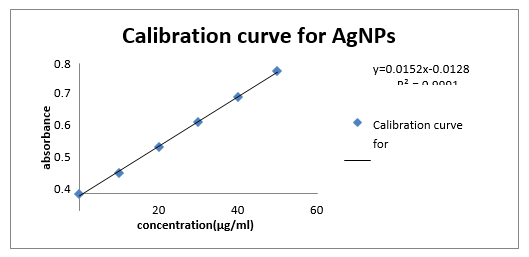

Figure: Calibration curve of Oxystelma esculentum silver nanoparticle and its regression value

Table: Formulation of Gel Incorporated Silver Nanoparticle

Evaluation of Gel Incorporated Silver nanoparticle

 Physical appearance

The shades of different gel plan were viewed as yellowish brown with clear appearance which was viewed as smooth on application.

pH

The pH of type A and B not entirely set in stone by utilizing computerized pH meter. One gram of gel was broken up in 100 ml refined water and put away for two hours. The estimation of pH of every detailing was finished in three-fold and normal qualities are determined.

Homogeneity

After the gels have been set in compartment, each created gels were tried for homogeneity by visual examination. Washability Plan was applied on the skin and the simplicity expands times of washing with water was checked. Viscosity Consistency of still up in the air by utilizing Brook field viscometer rat 50rpm utilizing axle no.64. Each per using was taken after harmony of the example toward the finish of 2 minutes.

Invitro drug release of formulation F1and F2 was carried out in phosphate buffer pH7.4.

Table21: Invitro drug release of formulation F1and F2

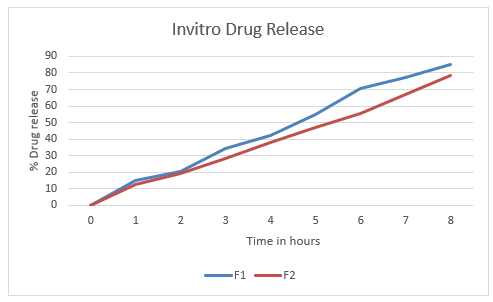

Figure: Invitro drug release of gel incorporated silver nanoparticle formulation F1 and F2
